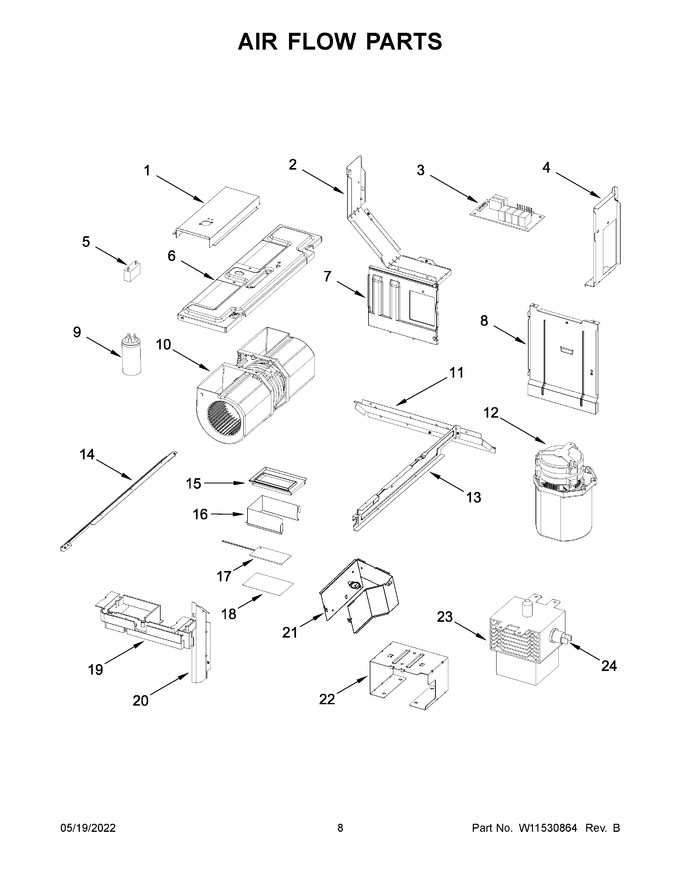

05 - Air Flow Parts


06 - Turntable Parts


07 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11095818		Outlet, Cavity (back)				$ 173.34
2	W11095827		Air Deflector, Right		Appelez-nous	-
3	W11286002		Pcba, Hood Control				$ 276.14
4	W11095824		Outlet Deflector, Right				$ 78.76
5	W11405831		Capacitor, Motor				$ 44.36
6	W11086272		Chassis, Fan		Appelez-nous	-
7	W11095794		Deflector, Cooling Fan		Appelez-nous	-
8	W11095804		Hood Deflector, Right		Appelez-nous	-
9	W10557536		Sensor, Humidity				$ 127.30
10	W11409093		Motor, Hood			Immediately	$ 192.43
11	W11096432		Hood Deflector, Back		Appelez-nous	-
12	W11213353		Hood Motor, Single   (Replaces: W11039275)			Immediately	$ 212.72
13	W11095814		Divider, Air		Appelez-nous	-
14	W11095830		Air Guide, Left		Appelez-nous	-
15	W11405836		Seal, Lighting				$ 21.57
16	W11086300		Housing, Cavity Lighting		Appelez-nous	-
17	W11443139		Lamp, Led   (Replaces: W11384716)				$ 84.81
18	W11186948		Foil, Lamp				$ 78.81
19	W11099491		Holder, Wire		Appelez-nous	-
20	W11095828		Channel, Hood Back		Appelez-nous	-
21	W11323215		Housing, Tranformer		Appelez-nous	-
22	W11518459		Shield Plate, Wave Guide   (Replaces: W11460406)				$ 29.52
23	W11402082		Magnetron   (Replaces: W11115131)			Immediately	$ 379.64
24	W11443128		Thermostat, Magnetron   (Replaces: W11378280)				$ 19.60
