Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13109401WQ Door, Refrigerator (white)   (Replaces: 13109401W) Special Order $ 1,073.65

2 WP67001130 Plug, Button (white)   (Replaces: 12246607) In-Stock Immediately $ 5.98

3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 WP67001021 Bucket, Medium   (Replaces: 12557204) Special Order $ 84.95

6 Y12528501 Nameplate (stainless)   (Replaces: 12528501) In-Stock Immediately $ 62.74

7 W10443313 Gasket, Door (white) Special Order $ 361.01

8 W11387532 Handle, Door (white)   (Replaces: W11188495) Special Order $ 196.07

9 WPW10288153 Screw   (Replaces: W10288153) In-Stock Immediately $ 9.65

10 WP67003638 Closure, Door (white)   (Replaces: 12028505W) In-Stock Immediately $ 8.15

11 67001019 Retainer, Door   (Replaces: 12557905) In-Stock Immediately $ 112.90

12 WP67006908 Screw   (Replaces: 12990518) In-Stock Immediately $ 8.78

13 12968202W Stop, Door (white)   (Replaces: 10447111) Special Order $ 69.29

10A WP67003639 Closure, Door (black)   (Replaces: 12028505B) Special Order $ 90.32

10B WP12028505AP Closure, Door (grey)   (Replaces: 12028505AP) In-Stock Immediately $ 61.46

13A W11708403 Stop, Door (black)   (Replaces: 10447112) In-Stock Immediately $ 14.75

13B W11401472 Stop, Door (grey)   (Replaces: 10447114) In-Stock Immediately $ 23.56

1A 13109401BQ Door, Refrigerator (black)   (Replaces: 13109401B) Special Order $ 1,073.65

1B 13107554SQ Door, Refrigerator (stainless)   (Replaces: 13107554S) Special Order $ 1,166.29

2A WP12246608 Plug, Button (black)   (Replaces: 12246608) In-Stock Immediately $ 8.15

2B WP12246610 Plug, Button (grey)   (Replaces: 12246610) In-Stock Immediately $ 8.15

7A WPW10436248 Gasket, Door (black)   (Replaces: W10436248) Special Order $ 286.97

7B W10443314 Gasket, Door (grey) In-Stock Immediately $ 349.07

8A W11351146 Handle, Door (black)   (Replaces: W11188847) Special Order $ 189.08

8B W11351147 Handle, Door (stainless Steel)   (Replaces: W11188849) Special Order $ 198.22

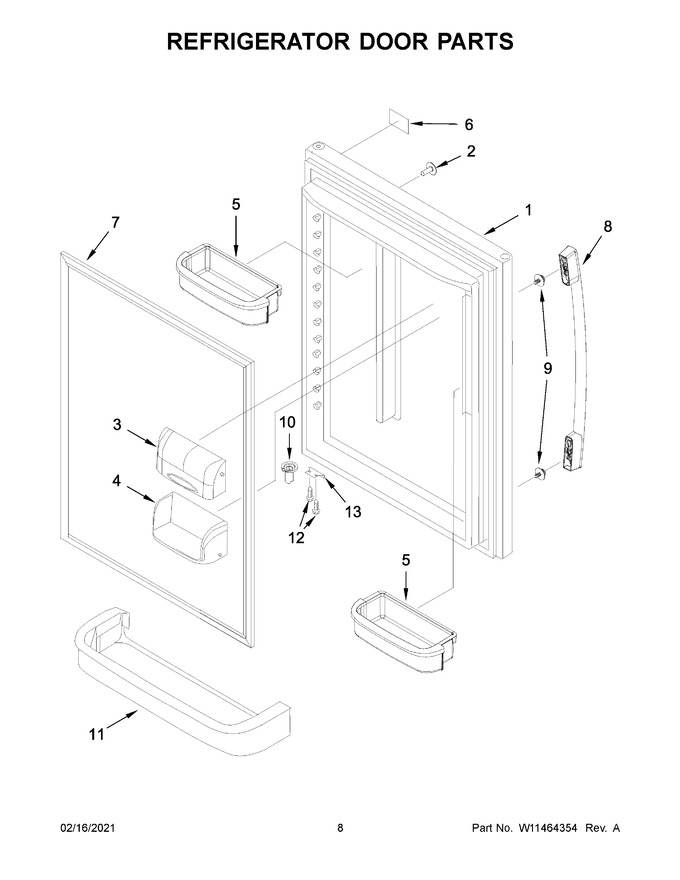

    View Diagram in Separate Window     Print Icon   Print Part List
