View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Body
04 - Main Top / Induction Units

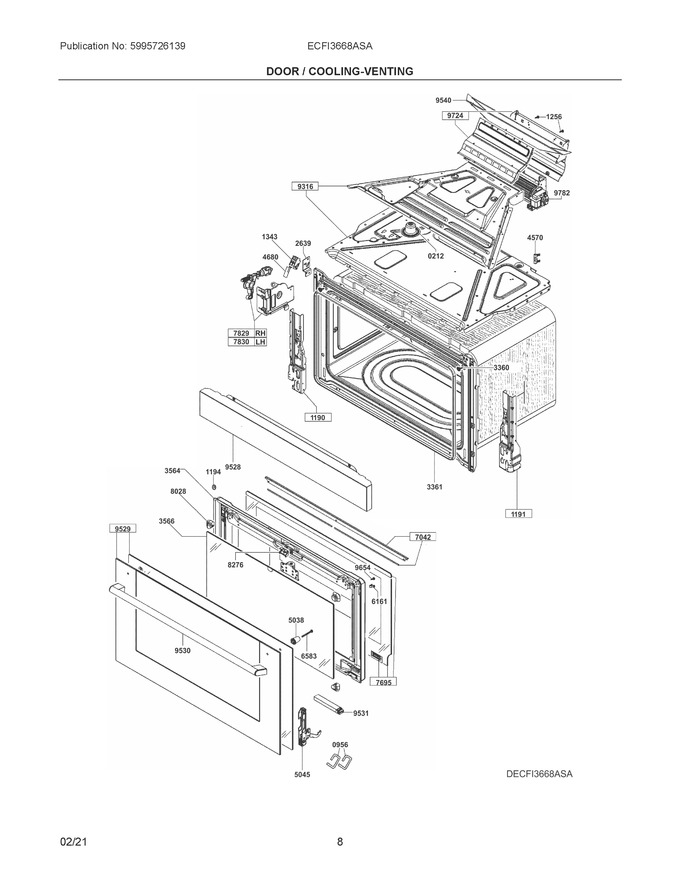

05 - Door / Cooling-venting
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 212 | 5304527455 | Chimney, Oven Catalyst |
|
- | |||||
| 956 | 5304527463 | Hook, Door Hinge, Oven, (2) |
|
- | |||||
| 1190 | 5304527705 | Bracket, Column, Lh Front |
|
$ 136.08 | |||||
| 1191 | 5304527706 | Bracket, Column, Rh Front |
|
$ 138.35 | |||||
| 1194 | 5304527442 | Washer, Door, (4) |
|
- | |||||
| 1256 | 5304527707 | Bumper, Rubber, Rear, (2), Air Duct |
|
- | |||||
| 1343 | 5304527456 | Switch, Micro, Door, 16a, 220v |
|
$ 79.13 | |||||
| 2639 | 5304527469 | Bracket, Microswitch, Door |
|
- | |||||
| 3360 | 5304527471 | Bumper, Door, (2) |
|
- | |||||
| 3361 | 5304527709 | Gasket, Oven Door |
|
$ 186.96 | |||||
| 3564 | 5304527717 | Frame, Inner Door |
|
- | |||||
| 3566 | 5304527718 | Glass, Door, Middle |
|
Immediately | $ 220.33 | ||||
| 4570 | 5304527488 | Heater, Ceramic, 60 Ohm, 50w |
|
Immediately | $ 178.93 | ||||
| 4680 | 5304527473 | Lever, Microswitch |
|
$ 17.44 | |||||
| 5038 | 5304527554 | Spacer, Door Handle, Inner, (2) |
|
- | |||||
| 5045 | 5304532739 | Hinge, Oven Door, (2) (Replaces: 5304527711) |
|
Immediately | $ 133.20 | ||||
| 6161 | 5304527446 | Spring, Pivot Fixing, Door, (2) |
|
- | |||||
| 6583 | 5304527452 | Screw, Tsc Zinc, M5 X 45, (2), Door Handle |
|
- | |||||
| 7042 | 5304527713 | Trim Assembly, Door, Upper |
|
- | |||||
| 7695 | 5304527721 | Door Glass, Assembly, Internal |
|
$ 320.89 | |||||
| 7829 | 5304527499 | Shock Absorber, Assembly, Door-rh, W/bracket |
|
$ 205.54 | |||||
| 7830 | 5304527500 | Shock Absorber, Assembly, Door-lh, W/bracket |
|
$ 205.54 | |||||
| 8028 | 5304527714 | Grommet, Stopper, Middle Glass, (4) |
|
- | |||||
| 8276 | 5304527464 | Catch, Door Latch, Inner |
|
- | |||||
| 9316 | 5304527704 | Air Duct, Assembly, Cooling Fan |
|
$ 191.11 | |||||
| 9528 | 5304527734 | Toe Plate, Oven Front, Lower, Food Warmer |
|
- | |||||
| 9529 | 5304527735 | Door Assembly, Glass/steel, Black/stainless, Outer |
|
$ 847.97 | |||||
| 9530 | 5304527736 | Handle, Oven Door, Stainless |
|
- | |||||
| 9531 | 5304527534 | Reinforcement, Door, (2) |
|
- | |||||
| 9540 | 5304527739 | Extension, Air Duct |
|
$ 146.01 | |||||
| 9654 | 5304527448 | Bumper, Rubber, (7) |
|
- | |||||
| 9724 | 5304527784 | Support, Assembly |
|
$ 162.31 | |||||
| 9782 | 5304527479 | Blower, Motor, Cooling Fan |
|
Immediately | $ 292.22 |
