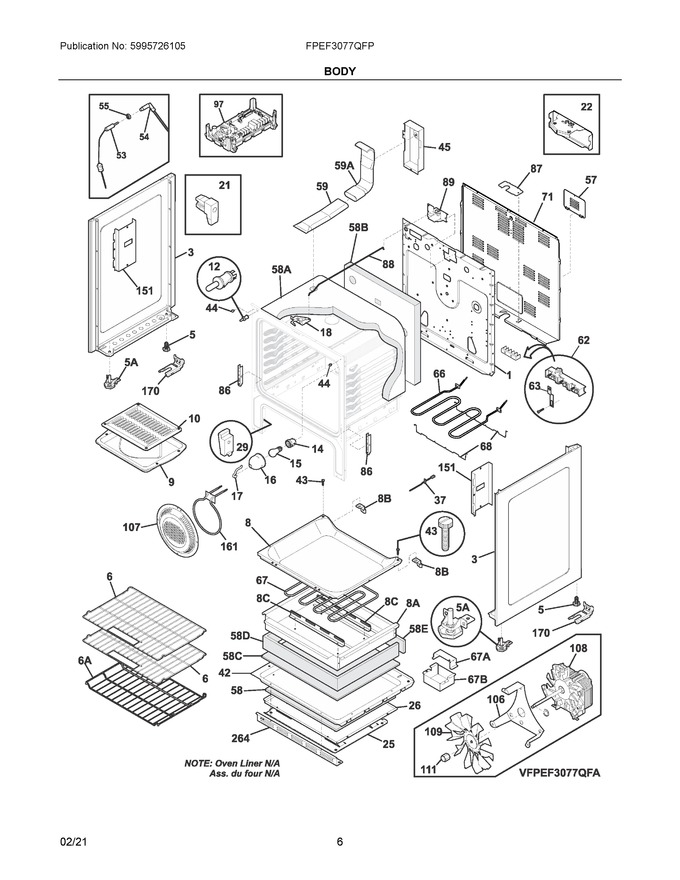

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Backguard
03 - Body
04 - Top/drawer
05 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 316401806 | Panel, Main Back |
|
$ 93.25 | |||||
| 3 | 316400144 | Panel, Bodyside, Black, Rh |
|
Immediately | $ 149.65 | ||||
| 5 | 316272900 | Screw, Leveling, Plastic, Rear, (2) |
|
Immediately | $ 30.55 | ||||
| 6 | 316496201 | Rack, Oven (Replaces: 316498003) |
|
Immediately | $ 114.98 | ||||
| 8 | 316549601 | Bottom, Oven |
|
$ 141.29 | |||||
| 9 | 316081900 | Pan, Broileroptional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert, Broiler Panoptional Access0ry |
|
$ 68.85 | |||||
| 12 | 316445500 | Switch, Oven Light, Door Frame (Replaces: 316445507) |
|
Immediately | $ 60.82 | ||||
| 14 | 316116400 | Receptacle, Oven Light |
|
Immediately | $ 62.33 | ||||
| 15 | 316538904 | Lamp, Oven Light |
|
Immediately | $ 22.75 | ||||
| 16 | 5304524341 | Lens, Oven Light, Glass |
|
Immediately | $ 19.07 | ||||
| 17 | 316087500 | Retainer, Lens |
|
$ 63.00 | |||||
| 18 | 316405800 | Latch Assembly, Oven Door |
|
Immediately | $ 63.04 | ||||
| 21 | 316408000 | Clip, Bodyside |
|
$ 20.22 | |||||
| 22 | 316286300 | Bracket-bodyside, (2) |
|
$ 19.69 | |||||
| 25 | 316571000 | Shield, Drawer, Upper |
|
- | |||||
| 26 | 316563200 | Shield, Lower, Hidden Bake |
|
$ 81.90 | |||||
| 37 | 316490000 | Probe, Oven Temp |
|
Immediately | $ 64.78 | ||||
| 42 | 316564300 | Shield, Wool, Lower, Hidden Bake |
|
- | |||||
| 43 | 5303285179 | Screw, Wafer Head, 8-32t X 0.500, Black, 44* |
|
$ 14.96 | |||||
| 44 | 316517600 | Bumper, Front, Main |
|
$ 13.39 | |||||
| 45 | 316234100 | Shield, Wire, Vent Tube |
|
$ 77.96 | |||||
| 53 | 5304504202 | Probe, Meat Temp, Red (Replaces: 5304514885) |
|
Immediately | $ 117.99 | ||||
| 54 | 316536904 | Receptacle, Meat Probe (Replaces: 5304516901) |
|
Immediately | $ 134.43 | ||||
| 55 | 316247700 | Nut, Mounting |
|
$ 20.22 | |||||
| 57 | 316283600 | Cover, Access |
|
$ 13.89 | |||||
| 58 | 316565500 | Insulation, Lower, Hidden Bake |
|
$ 77.18 | |||||
| 59 | 316208401 | Vent Tube, Assembly, W/catalyst |
|
$ 215.71 | |||||
| 62 | 5303935271 | Terminal Block Kit |
|
$ 81.73 | |||||
| 63 | 316542600 | Plate, Grounding Strap |
|
- | |||||
| 66 | 316430900 | Element, Broil, 4000w |
|
Immediately | $ 284.67 | ||||
| 67 | 316563600 | Element, Hidden Bake |
|
$ 269.63 | |||||
| 68 | 316429100 | Support, Element, Broil |
|
$ 69.46 | |||||
| 71 | 316283204 | Shield, Rear Wall |
|
$ 62.36 | |||||
| 86 | 316441300 | Receptacle, Hinge |
|
$ 24.41 | |||||
| 87 | 316081200 | Bracket, Cable Mtg |
|
- | |||||
| 88 | 316203500 | Rod, Auto Latch |
|
$ 80.33 | |||||
| 89 | 5304528973 | Motor-latch (Replaces: 316464300) |
|
Immediately | $ 58.16 | ||||
| 97 | 316472807 | Circuit Board, Assembly, Ovc1, W/housing |
|
Immediately | $ 407.52 | ||||
| 106 | 316404100 | Bracket, Motor Mtg. |
|
$ 70.78 | |||||
| 107 | 316026701 | Cover, Fan |
|
$ 454.32 | |||||
| 108 | 316256100 | Motor-fan |
|
Immediately | $ 234.64 | ||||
| 109 | 318398302 | Fan Blade |
|
Immediately | $ 32.34 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 21.26 | ||||
| 151 | 316404601 | Shield, Bodyside |
|
$ 23.63 | |||||
| 161 | 316211603 | Element, Convection Fan, 350 W |
|
$ 284.29 | |||||
| 170 | 316112005 | Anti Tip Kit, Assy, W/template |
|
Immediately | $ 21.01 | ||||
| 264 | 316570901 | Shield, Front Frame, Black |
|
$ 28.35 | |||||
| 3A | 316400145 | Panel, Bodyside, Black, Lh |
|
Immediately | $ 148.81 | ||||
| 58A | 316406604 | Insulation, Oven Wrapper (Replaces: 316406601) |
|
Immediately | $ 77.52 | ||||
| 58B | 316406503 | Insulation, Oven Back |
|
$ 125.21 | |||||
| 58C | 316565400 | Insulation, Sump, Hidden Bake |
|
$ 50.19 | |||||
| 58D | 316565200 | Insulation, Front & Sides, Hidden Bake |
|
$ 39.38 | |||||
| 58E | 316565300 | Insulation, Rear, Hidden Bake |
|
$ 22.05 | |||||
| 59A | 316208304 | Tube, Oven Vent, Upper |
|
$ 88.99 | |||||
| 5A | 5304509869 | Leveling Leg Assy, Metal, Front, (2), Bracket & Leg |
|
Immediately | $ 16.76 | ||||
| 67A | 316574100 | Cover, Terminal, Upper, Hidden Bake |
|
- | |||||
| 67B | 316563300 | Cover, Terminal, Lower, Hidden Bake |
|
- | |||||
| 6A | 316496205 | Rack, Oven |
|
$ 149.63 | |||||
| 8A | 316563501 | Base, Element, Hidden Bake |
|
$ 186.06 | |||||
| 8B | 316563400 | Bracket, Support, Oven Bottom, (2) |
|
$ 11.81 | |||||
| 8C | 316505801 | Support, Element |
|
$ 28.31 | |||||
| NI | 316282700 | Screw, 8-18 X 1.438, Oven Bottom (Replaces: 3131732) |
|
$ 11.03 | |||||
| NI | 316247300 | Catalyst, Oven Vent, Ceramic |
|
$ 110.25 | |||||
| NI | 5308014215 | Screw, 6-20 X 0.312 |
|
$ 2.53 | |||||
| NI | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 6.30 | |||||
| NI | 316418901 | Screw, Trilobe, 10-32 X 5/16", Black |
|
$ 15.75 | |||||
| NI | 316279600 | Screw, Bracket, Stiffener, (4) |
|
$ 13.39 | |||||
| NI | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 15.75 | |||||
| NI | 5304516183 | Harness, Wiring, Bake Element |
|
- | |||||
| NI | 5304516198 | Harness, Wiring, Main |
|
$ 168.53 | |||||
| NI | 5304516209 | Wiring Harness, Prb/mdl/comm |
|
$ 66.74 | |||||
| NI | 5304516210 | Wiring Harness, Switch/latch, Door |
|
$ 35.18 | |||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 14.96 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NIA | 316534100 | Washer, Flat, Meat Probe |
|
$ 16.54 | |||||
| NIA | 5304494446 | Switch, Thermal Cutoff, 145c |
|
$ 48.04 | |||||
| NIA | 316112005 | Bracket, Anti-tip (Replaces: 316107200) |
|
Immediately | $ 21.01 | ||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.37 | |||||
| NIB | 316116000 | Screw, Concrete, 1.75", Anti-tip Brkt |
|
$ 14.32 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 12.60 | |||||
| NIC | 316541700 | Template, Anti-tip |
|
- | |||||
| NIC | 316542203 | Insulator |
|
- |
