New Model Search:

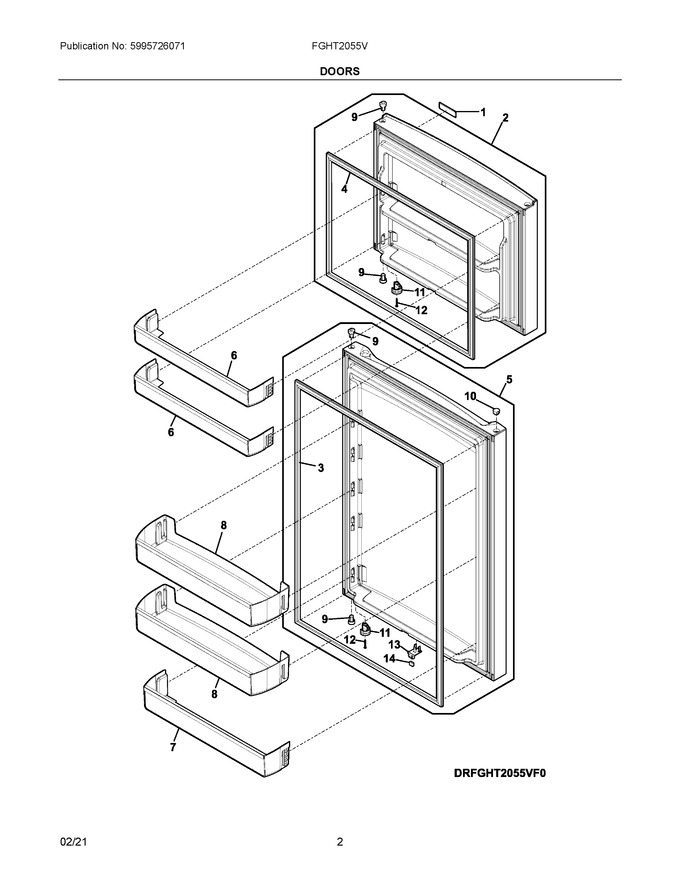

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304510904 | Nameplate, Black Stainless, Frig Gallery |
|
$ 60.67 | |||||
| 2 | 5304528921 | Door Assembly |
|
$ 348.35 | |||||
| 3 | 5304528905 | Gasket |
|
$ 227.91 | |||||
| 4 | 5304528906 | Gasket |
|
Immediately | $ 207.72 | ||||
| 5 | 5304528917 | Door Assembly |
|
$ 404.71 | |||||
| 6 | 5304528879 | Bin |
|
$ 99.83 | |||||
| 7 | 5304528877 | Bin |
|
$ 99.83 | |||||
| 8 | 140137082024 | Bin (Replaces: 5304528878) |
|
- | |||||
| 9 | 5304522194 | Bearing, Hinge, Gray |
|
Immediately | $ 2.53 | ||||
| 10 | 5304522187 | Cover, Hinge Bearing, Gray |
|
Immediately | $ 8.27 | ||||
| 11 | 5304522238 | Hook, Door Closer, Gray |
|
Immediately | $ 9.27 | ||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 12.64 | ||||
| 13 | 5304528883 | Housing |
|
Immediately | $ 10.11 | ||||
| 14 | 5304519044 | Magnet, Reed Switch |
|
Immediately | $ 21.06 |
