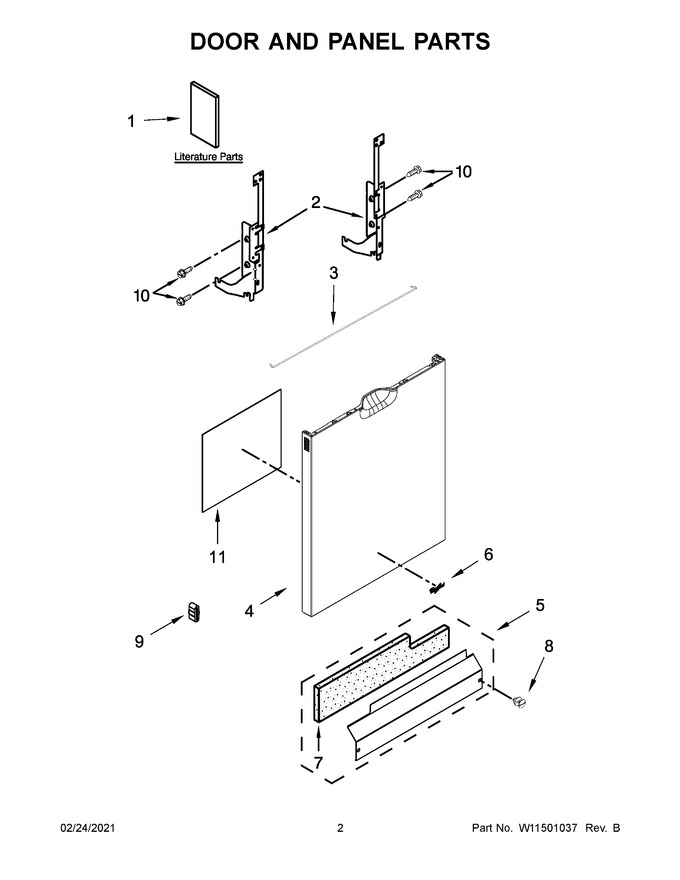

02 - Door And Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11380970		Energy Guide		Appelez-nous	-
2	W11806566		Arm, Hinge (left Hand)   (Replaces: W11432482)			Immediately	$ 71.77
3	W10850371		Stiffener, Door   (Replaces: W10803537)			Immediately	$ 32.88
4	W10802703		Panel, Front (includes Nameplate) (black)   (Replaces: W10629470)				$ 406.15
5	W10827631		Access Panel (black)   (Replaces: W10369023)			Immediately	$ 195.64
6	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 63.13
7	W10831329		Insulation, Toe Panel   (Replaces: W10519755)			Immediately	$ 43.30
8	WPW10503548		Fastener (black)   (Replaces: W10503548)			Immediately	$ 30.39
9	WP8268961		Sleeve, Friction   (Replaces: 8268961)			Immediately	$ 5.93
10	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 8.80
11	W11126003		Insulation, Front Panel   (Replaces: W10315897)			Immediately	$ 65.25
1A	W11384187		Owners Manual		Appelez-nous	-
1B	W11266092		Tech Sheet		Appelez-nous	-
2A	W11613572		Arm, Hinge (right Hand)   (Replaces: W11432481)			Immediately	$ 83.93
4A	W10846351		Panel, Front (includes Nameplate) (white)   (Replaces: W10629471)				$ 342.21
4B	WPW10629473		Panel, Front (includes Nameplate) (stainless)   (Replaces: W10629473)				$ 388.41
8A	WPW10503549		Fastener (white)   (Replaces: W10503549)			Immediately	$ 7.77
