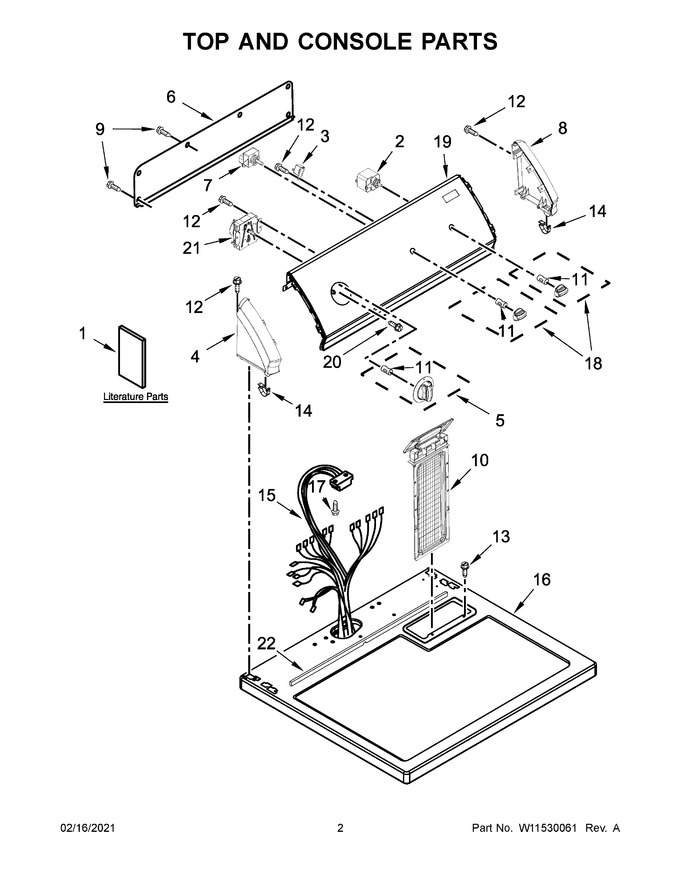

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10848818		Installation Instructions		Appelez-nous	-
2	WPW10117655		Switch, Push To Start   (Replaces: W10117655)			Immediately	$ 85.60
3	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 134.05
4	WP8559502		End Cap (left) (white)   (Replaces: 8559502)				$ 72.99
5	W10317457		Assembly, Timer Knob (grey)		Appelez-nous	-
6	W10103406		Panel, Rear (console)				$ 135.31
7	WP3399639		Switch, Temperature   (Replaces: 3399639)				$ 131.16
8	WP8559501		End Cap (right) (white)   (Replaces: 8559501)				$ 72.77
9	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
10	W11778253		Screen, Lint (white)   (Replaces: W10717210)			Immediately	$ 54.63
11	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
12	WP90767		Screw   (Replaces: 3348629)			Immediately	$ 8.25
13	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
15	W10865747		Harness, Wiring		Appelez-nous	-
16	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
17	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
18	W10317458		Assembly, Control Knob (grey)		Appelez-nous	-
19	W11089351		Assembly, Control Panel & Bracket   (Replaces: W11026908)		Appelez-nous	-
20	WP3400818		Screw   (Replaces: 3400818)				$ 8.81
21	WPW10185981		Assembly, Timer (60 Hz.)   (Replaces: W10185981)				$ 346.09
22	W10316616		Seal, Foam				$ 27.79
1A	W10096992		Use & Care Guide		Appelez-nous	-
1B	W10876319		Wiring Diagram		Appelez-nous	-
