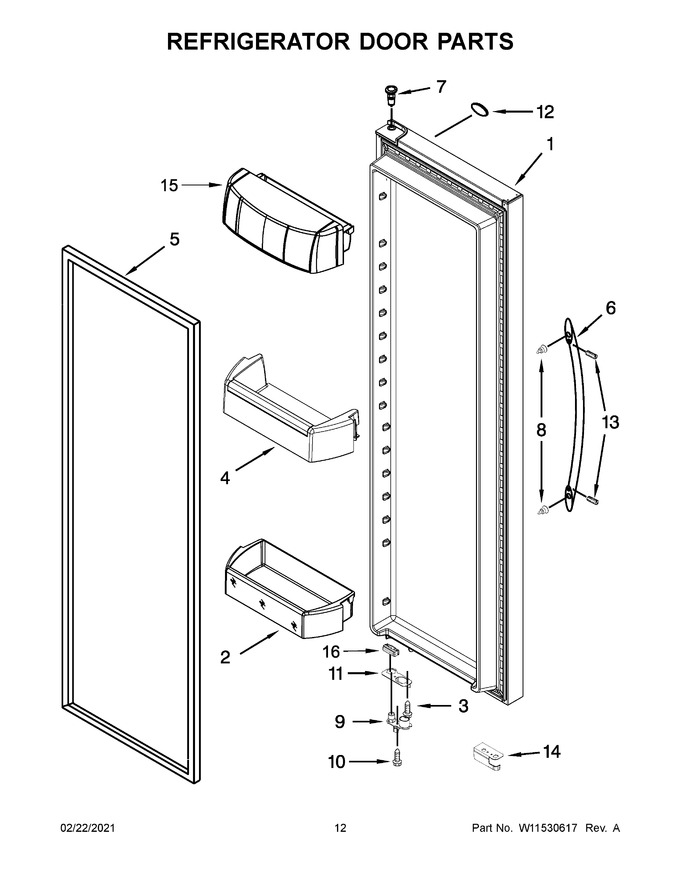

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10651576 | Door, Refrigerator (includes Item 5) (stainless) |
|
- | |||||
| 2 | WPW10527271 | Bin, Gallon Door (Replaces: W10527271) |
|
Immediately | $ 112.43 | ||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 8.06 | |||||
| 4 | WPW10296855 | Bin, Shallow Door (Replaces: W10296855) |
|
$ 79.15 | |||||
| 5 | W10355582 | Gasket, Door (grey) (Replaces: W10249916) |
|
$ 341.26 | |||||
| 6 | W10899551 | Handle (stainless) (Replaces: W10713676) |
|
Immediately | $ 188.82 | ||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 8.15 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 9 | WPW10257203 | Closer, Upper Cam Door (grey) (Replaces: W10257203) |
|
$ 12.96 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 11.39 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10888898) |
|
$ 80.24 | |||||
| 12 | WPW10511972 | Nameplate (grey) (Replaces: W10511972) |
|
$ 79.55 | |||||
| 13 | W11366418 | Set Screw (silver) (Replaces: W10010140) |
|
Immediately | $ 18.43 | ||||
| 14 | W11661847 | Cover, Door Stop (grey) (Replaces: W10789147) |
|
Immediately | $ 31.71 | ||||
| 15 | WPW10324760 | Assembly, Utility Compartment (Replaces: W10324760) |
|
$ 85.60 | |||||
| 16 | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 23.35 |
