SELECT A DIAGRAM

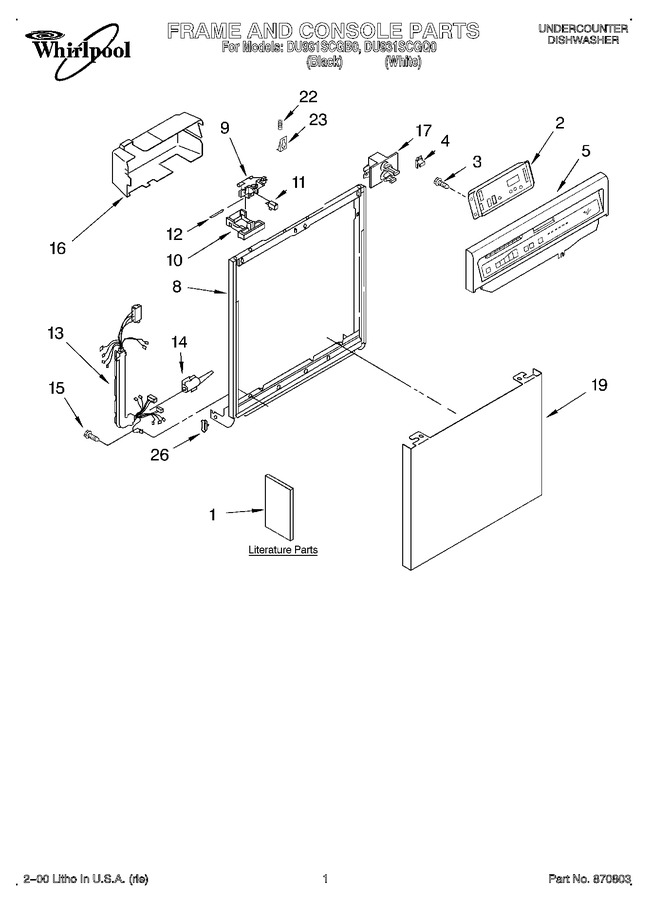

01 - Frame And Console, Literature


02 - Inner Door


03 - Tub Assembly


04 - Pump And Motor


05 - Upper Dishrack And Water Feed


06 - Lower Dishrack


07 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8274623		Literature Parts (tech Sheet) (guide, Energy)		Appelez-nous	-
1	LIT8051229		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT3367007		Literature Parts (instructions, Installation (supplement) (locating Your Water Supply))		Appelez-nous	-
1	LIT8051566		Literature Parts (guide, Use & Care)		Appelez-nous	-
1	LIT8051288		Literature Parts (tech Sheet) (english)		Appelez-nous	-
1	LIT8051289		Literature Parts (tech Sheet) (french)		Appelez-nous	-
2	9744483		Control, Electronic		Appelez-nous	-
3	WP304231		Screw,   (Replaces: 304231)			Immediately	$ 8.14
4	675813		Fuse, Thermal   (Replaces: 3376359)			Immediately	$ 48.05
5	8274721		Console, Complete (includes Active Overlay & Insert) (white)		Appelez-nous	-
5	8274720		Console, Complete (includes Active Overlay & Insert) (black)		Appelez-nous	-
8	9743028		Door Frame (black)				$ 62.19
9	3369458		Latch Asm.				$ 38.62
10	3372231		Lever, Latch White		Appelez-nous	-
10	3369457		Lever, Latch (black)				$ 5.84
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	8271433		Harness And Protector		Appelez-nous	-
14	3376405		Elbow, Harness				$ 14.02
15	WP488234		Screw (3)   (Replaces: 3400803)				$ 7.08
16	8051304		Cover, Timer		Appelez-nous	-
17	3374501		Motor, Dual				$ 45.99
19	3379375		Panel Front (black)				$ 115.07
19	3379376		Panel Front (white)				$ 116.81
22	675782		Spring, Door Catch   (Replaces: 3379358)				$ 9.90
23	675782		Catch, Door   (Replaces: 3379357)				$ 9.90
26	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01

    View Diagram in Separate Window       Print Part List
