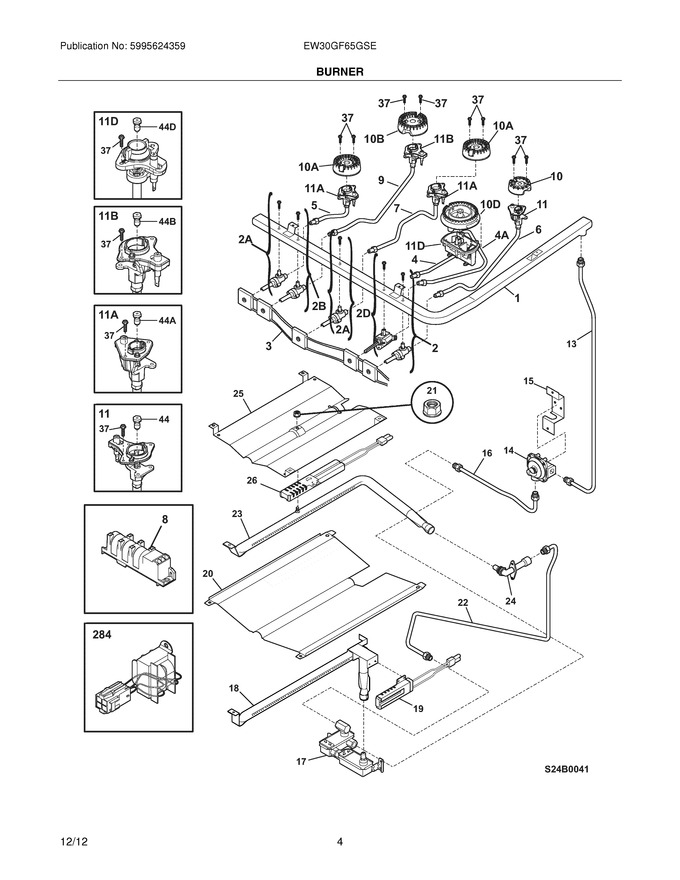

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 808608804 | Module,spark (Replaces: 318079001) |
|
Immediately | $ 84.51 | ||||
| 15 | 316091600 | Bracket-regulator |
|
$ 81.73 | |||||
| 20 | 5304519024 | Baffle,oven Burner (Replaces: 316401401) |
|
Immediately | $ 89.32 | ||||
| 21 | 154079601 | Nut,hex Head Sems (Replaces: 5303013272) |
|
$ 0.46 | |||||
| 25 | 316401301 | Baffle,broil Burner |
|
$ 173.57 | |||||
| 37 | 316540900 | Screw,burner ,head Mtg ,(8) |
|
Immediately | $ 16.85 | ||||
| 44 | 316527504 | Orifice,top Burner ,5k |
|
$ 25.20 | |||||
| 284 | 316536100 | Transformer |
|
Immediately | $ 234.26 | ||||
| 44D | 316523508 | Orifice,top Burner ,18k |
|
$ 13.23 | |||||
| F1 | 316505200 | Manifold |
|
- | |||||
| F10 | 316438200 | Burner,sealed ,5k |
|
Immediately | $ 63.00 | ||||
| F10A | 316558300 | Burner,sealed ,9.5k |
|
Immediately | $ 58.28 | ||||
| F10B | 316438600 | Burner,sealed ,14k |
|
$ 88.67 | |||||
| F10D | 316525400 | Burner,sealed ,dual ,18k |
|
- | |||||
| F11 | 316540800 | Ignitor/orifice Assy.,top Burner ,5k ,w/holder |
|
$ 12.44 | |||||
| F11A | 316540700 | Ignitor/orifice Assy.,top Burner ,9.5k ,w/holder |
|
$ 12.39 | |||||
| F11B | 316543204 | Ignitor/orifice Assy.,top Burner ,14k |
|
$ 13.70 | |||||
| F11D | 316525100 | Ignitor/orifice Assy.,top Burner ,18k ,w/holder |
|
- | |||||
| F13 | 316545700 | Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings |
|
$ 148.58 | |||||
| F14 | 5304521339 | Regulator,pressure (Replaces: 316416700) |
|
Immediately | $ 117.13 | ||||
| F16 | 5304507348 | Tube-valve To Rgltr,3/8 (Replaces: 316431000) |
|
Immediately | $ 52.25 | ||||
| F17 | 316404901 | Valve,safety |
|
$ 406.35 | |||||
| F18 | 316404400 | Burner,oven |
|
$ 121.22 | |||||
| F19 | 5304506545 | Ignitor,broil Burner (Replaces: 316489404) |
|
Immediately | $ 104.68 | ||||
| F2 | 316520700 | Valve,burner ,5k |
|
$ 126.87 | |||||
| F22 | 5304507768 | Tube-valve To Mixer (Replaces: 316537100) |
|
$ 55.62 | |||||
| F23 | 316404304 | Burner,broiler |
|
$ 93.77 | |||||
| F24 | 5304516894 | Elbow,mixer (Replaces: 316409700) |
|
$ 96.90 | |||||
| F26 | 316489403 | Ignitor,bake Burner |
|
Immediately | $ 125.72 | ||||
| F2A | 316520701 | Valve,burner ,9.5k |
|
$ 131.84 | |||||
| F2B | 316520703 | Valve,burner ,14.2k |
|
$ 146.01 | |||||
| F2D | 316574901 | Valve,top Burner ,18k |
|
$ 89.51 | |||||
| F3 | 316518201 | Harness Assembly,ignitor ,w/switches |
|
$ 204.03 | |||||
| F4 | 316509000 | Tube,burner ,right Front |
|
$ 95.34 | |||||
| F44A | 316527500 | Orifice,top Burner ,9.5k |
|
$ 23.78 | |||||
| F44B | 316527511 | Orifice,top Burner ,14k |
|
$ 22.05 | |||||
| F4A | 316509100 | Tube,burner ,right Front |
|
$ 91.40 | |||||
| F5 | 316509300 | Tube,burner ,rf & Lf ,(2) |
|
- | |||||
| F6 | 316509200 | Tube,burner ,rr |
|
- | |||||
| F7 | 316509400 | Tube,burner ,center |
|
$ 117.28 | |||||
| F9 | 316526600 | Tube,burner ,left Rear |
|
$ 107.69 | |||||
| FNI | 316526900 | Harness,ignitor |
|
$ 70.88 | |||||
| FNI | 316064103 | Wire,ground Assembly |
|
- | |||||
| NI | 316021109 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316089500 | Screw, 10-16 X .486 |
|
$ 14.96 | |||||
| NI | 316401500 | Cover,broil Ignitor |
|
$ 14.32 | |||||
| NI | 316443200 | Bracket-support |
|
- | |||||
| NI | 316215600 | Screw,valve Mtg. ,1/4 - 20 |
|
Immediately | $ 15.75 | ||||
| NI | 316434900 | Shield,valve ,bridge Burner |
|
$ 11.55 | |||||
| NI | 316001017 | Screw,ground Wire (Replaces: 316001003) |
|
$ 3.37 |
