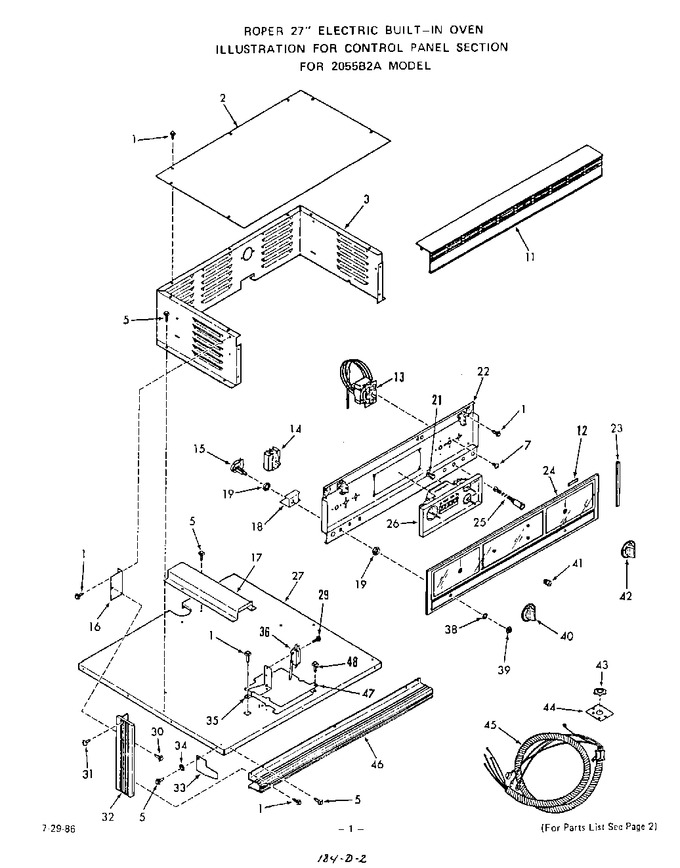

02 - Control Panel


03 - Lower Body


04 - Oven Door Lock


05 - Oven Door , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
2	323667		Top-control Housing			Immediately	$ 3.25
3	323659		Control Housing		Appelez-nous	-
5	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
7	78565		Screw 8-32x3/16``		Appelez-nous	-
11	329398		Top Trim		Appelez-nous	-
12	112370		Cushion		Appelez-nous	-
13	331880		Oven Thermostat		Appelez-nous	-
14	331881		Selector Switch		Appelez-nous	-
15	298794		Push Switch-oven Light		Appelez-nous	-
16	311759		Control Panel Support (lt. Or Rt.)		Appelez-nous	-
17	323663		Wire Cover		Appelez-nous	-
18	291351		Shield-switch		Appelez-nous	-
19	236129		Lock Nut		Appelez-nous	-
21	293577		Clip		Appelez-nous	-
22	333133		Mounting Panel-controls		Appelez-nous	-
23	239565		End Trim-control Panel Glass (rt Or Lt)		Appelez-nous	-
24	336291		Control Panel Glass		Appelez-nous	-
25	334853		Indicator Light		Appelez-nous	-
26	330938		Clock W/1 Hr. Timer		Appelez-nous	-
27	333121		Cabinet Top		Appelez-nous	-
29	327256		Screw 6-32x7/8``		Appelez-nous	-
30	293121		Screw 6-32x1/4``		Appelez-nous	-
31	299766		Screw 6-32 X 1/2``		Appelez-nous	-
32	314272		Right		Appelez-nous	-
32	314271		Left		Appelez-nous	-
33	312395		Heat Shield (lt. Or Rt.)		Appelez-nous	-
34	106462		Washer		Appelez-nous	-
35	335115		Bracket-micro Switch		Appelez-nous	-
36	334973		Micro Switch-lock		Appelez-nous	-
38	104838		Washer		Appelez-nous	-
39	87403		Knurled Nut		Appelez-nous	-
40	329446		Knob-selector Switch		Appelez-nous	-
41	109225		Knob-clock (start & Stop Time) (3)		Appelez-nous	-
42	334678		Knob-oven Thermostat		Appelez-nous	-
43	110340		Nut (for Key 45)		Appelez-nous	-
44	294983		Plate (for Key 45)		Appelez-nous	-
45	333035		Harness Conduit Asm.		Appelez-nous	-
46	314284		Control Panel Trim		Appelez-nous	-
47	333124		Cover Plate Lock		Appelez-nous	-
48	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
