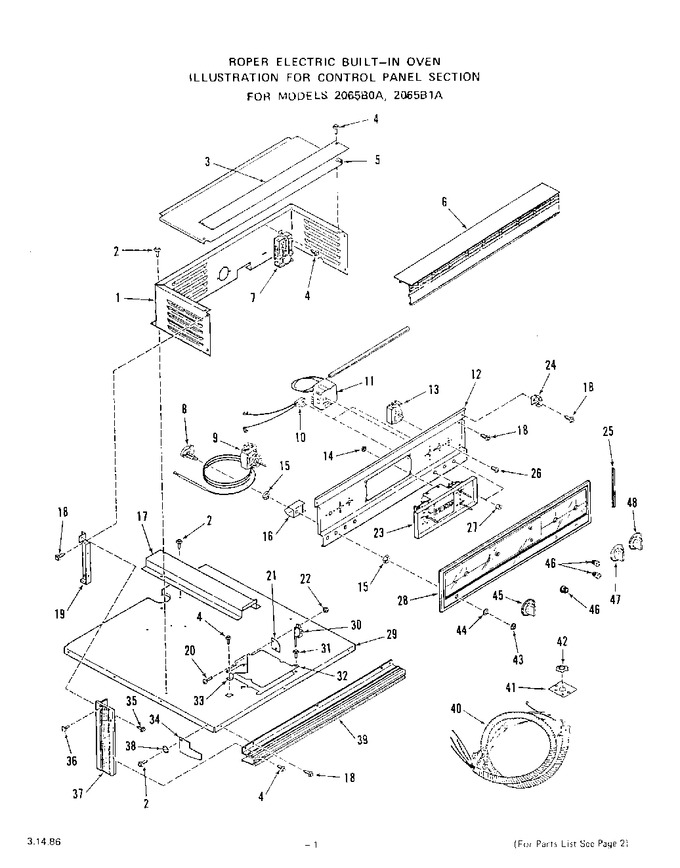

02 - Control Panel


03 - Oven Door Lock


04 - Body


05 - Upper Oven Door


06 - Lower Oven Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327989		Control Housing		Appelez-nous	-
2	327320		Screw 10-16x7/16``		Appelez-nous	-
3	329544		Extension-top Cover		Appelez-nous	-
4	102429		Screw 10 - 32 X 3/8``		Appelez-nous	-
5	328038		Top Cover-control Housing		Appelez-nous	-
6	328837		Trim		Appelez-nous	-
7	239802		Oven Relay		Appelez-nous	-
8	298794		Push Switch-oven Light		Appelez-nous	-
9	320938		Thermostat-lower Oven		Appelez-nous	-
10	282719		Lower Oven		Appelez-nous	-
10	282728		Upper Oven		Appelez-nous	-
11	324685		Thermostat-upper Oven		Appelez-nous	-
12	327979		Control Mounting Panel		Appelez-nous	-
13	326326		Selector Switch		Appelez-nous	-
14	74056		Keps Nut 10-24		Appelez-nous	-
15	236129		Lock Nut		Appelez-nous	-
16	291351		Shield-switch		Appelez-nous	-
17	327990		Wire Cover		Appelez-nous	-
18	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
19	328060		Right		Appelez-nous	-
19	328061		Left		Appelez-nous	-
20	229288		Screw 4-40x3/4``		Appelez-nous	-
21	327770		Insulation		Appelez-nous	-
22	306638		Keps Nut 4-40		Appelez-nous	-
23	329383		Clock W/1 Hr. Timer		Appelez-nous	-
24	328863		Retainer-glass (rt. Or Lt.)		Appelez-nous	-
25	328958		End Trim-control Panel Glass (rt. Or Lt.)		Appelez-nous	-
26	78565		Screw 8-32x3/16``		Appelez-nous	-
27	233161		Lens-indicator Light (2 Req)		Appelez-nous	-
28	329072		Control Panel Glass		Appelez-nous	-
29	327974		Cabinet Top		Appelez-nous	-
30	311868		Micro Switch - Lock		Appelez-nous	-
31	295850		Screw 10 - 32 X 7/16``		Appelez-nous	-
32	323652		Cover Plate-lock		Appelez-nous	-
33	328862		Bracket-micro Switch		Appelez-nous	-
34	312395		Heat Shield (lt. Or Rt.)		Appelez-nous	-
35	293121		Screw 6-32x1/4``		Appelez-nous	-
36	299766		Screw 6-32 X 1/2``		Appelez-nous	-
37	327991		Right		Appelez-nous	-
37	327992		Left		Appelez-nous	-
38	106462		Washer		Appelez-nous	-
39	328000		Trim-control Panel		Appelez-nous	-
40	328111		Harness Conduit Asem.		Appelez-nous	-
41	294983		Plate (for Key 40)		Appelez-nous	-
42	110340		Nut (for Key 40)		Appelez-nous	-
43	87403		Knurled Nut		Appelez-nous	-
44	104838		Washer		Appelez-nous	-
45	329447		Knob-lower Oven Thermostat		Appelez-nous	-
46	294810		Knob-clock		Appelez-nous	-
47	329445		Knob-upper Oven Thermostat		Appelez-nous	-
48	329446		Knob-selector Switch		Appelez-nous	-
