01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Motor


05 - Dishrack, Lit/optional


06 - Miscellaneous

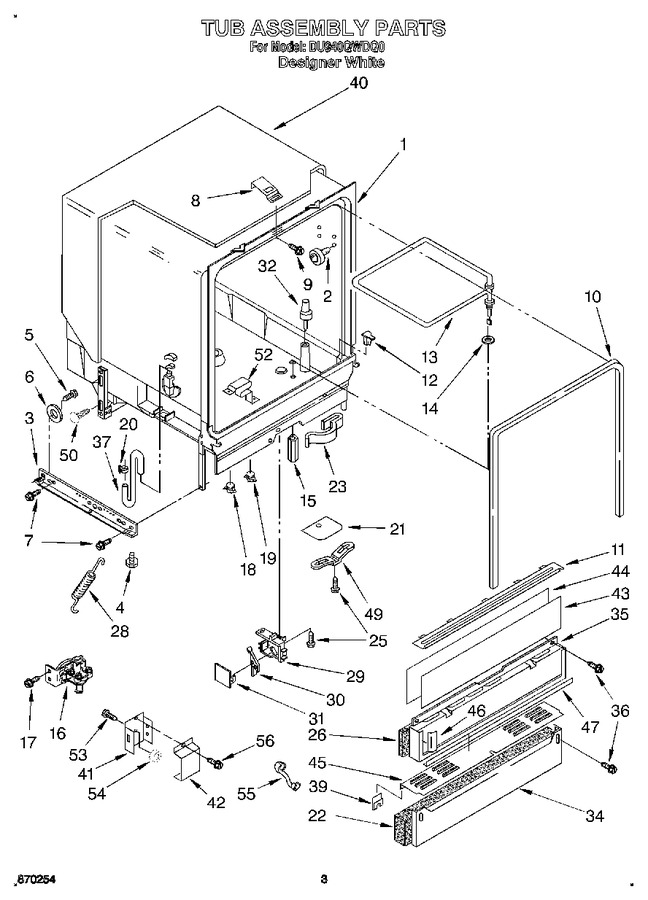

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3375130		Tub Assembly		Appelez-nous	-
2	3369078		Tub, Wheel Assembly (8)		Appelez-nous	-
3	3368932		Runner (2)		Appelez-nous	-
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 88.96
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 8.47
8	3374719		Plate, Latch		Appelez-nous	-
9	3374720		Screw, 8-32				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3368994)			Immediately	$ 74.12
11	3372413		Retainer, Access Panel				$ 40.99
12	WP8528862		Deflector (2)   (Replaces: 3369052)				$ 63.90
13	3375558		Heater		Appelez-nous	-
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 7.55
15	3369073		Nut (2) (heater Terminal)		Appelez-nous	-
16	3374621		Water Valve				$ 79.23
17	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 8.40
18	WP661566		Thermostat, Hi-limit   (Replaces: 3369777)			Immediately	$ 31.28
19	3373359		Thermostat		Appelez-nous	-
20	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 8.82
21	3376149		Shield, Thermostat		Appelez-nous	-
22	3374767		Insulation, Toe Panel		Appelez-nous	-
23	WP98997		Clip   (Replaces: 98997)				$ 11.64
25	WP304231		Screw, 8-18 X 1/2   (Replaces: 304231)			Immediately	$ 8.14
26	3382404		Sound Shield		Appelez-nous	-
28	WP3374343		Spring, Door (2)   (Replaces: 3374343)			Immediately	$ 35.13
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP3376397		Float & Washer Assembly   (Replaces: 3376397)				$ 108.64
34	3368942		Toe, Panel		Appelez-nous	-
35	WP3369193		Panel, Access   (Replaces: 3369193)				$ 171.61
36	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 8.18
37	3369414		Hose, Inlet		Appelez-nous	-
39	3374718		Clip, Grounding		Appelez-nous	-
40	W11086533		Sound Shield   (Replaces: 3374765)			Immediately	$ 31.30
41	3370292		Box, Terminal		Appelez-nous	-
42	300068		Cover Assembly Terminal Box				$ 30.14
43	3370868		Access Panel (white/black)				$ 26.11
44	3369526		Spacer, Corrugated				$ 25.23
45	3374728		Extension & Clip Assembly				$ 66.42
46	3371195		Trim, Side (2)		Appelez-nous	-
47	3369591		Trim, Bottom		Appelez-nous	-
49	3370555		Bracket, Thermostat		Appelez-nous	-
50	WP304666		Retainer, Push (2)   (Replaces: 304666)				$ 29.45
52	3368987		Support, Heater		Appelez-nous	-
53	WP250830		Screw, 8-32 X 1/2   (Replaces: 3371578)				$ 8.78
54	WP488130		Nut, 8-32   (Replaces: 3371579)				$ 7.32
55	3370307		Relief, Strain		Appelez-nous	-
56	3369138		Screw, 8-18				$ 5.81
