SELECT A DIAGRAM

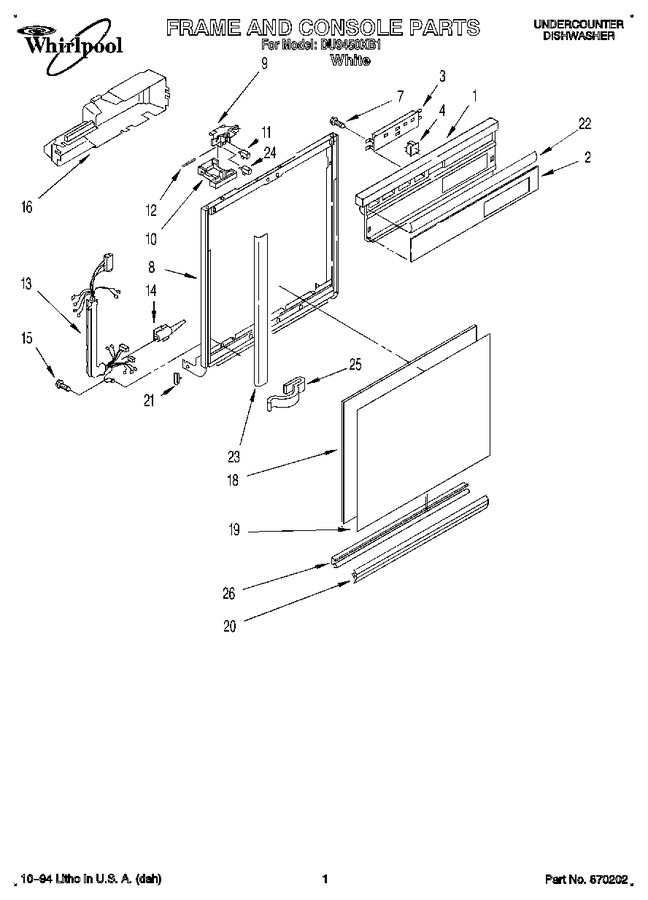

01 - Frame And Console


02 - Inner Door


03 - Tub Assembly


04 - Pump And Motor


05 - Dishrack


06 - Miscellaneous, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3373730		Console (includes Item 2)		Appelez-nous	-
2	3373667		Insert, Console		Appelez-nous	-
3	3373258		Switch, Control		Appelez-nous	-
4	3369417		Motor, Dual		Appelez-nous	-
7	WP304231		Screw, 8-18 X 1/2 (6)   (Replaces: 304231)			Immediately	$ 8.14
8	3374711		Door Frame (includes Item 26)				$ 158.94
9	WP3370964		Bolt, Latch   (Replaces: 3369502)				$ 94.29
10	3369574		Lever, Latch		Appelez-nous	-
11	3369325		Switch, (2)		Appelez-nous	-
12	3369504		Pin, Switch (2)				$ 7.41
13	3373637		Harness And Protector		Appelez-nous	-
14	3368977		Elbow, Harness		Appelez-nous	-
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 3400803)				$ 7.08
16	3373367		Cover Timer		Appelez-nous	-
18	3368979		Spacer, Corrugated				$ 38.99
19	WP3369769		Panel, Front Black/white   (Replaces: 3369769)				$ 59.42
20	3374011		Retainer, Panel				$ 59.30
21	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
22	3369324		Trim, Console		Appelez-nous	-
23	3369592		Trim (2)		Appelez-nous	-
24	3369530		Switch (1)		Appelez-nous	-
25	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
26	WP3374716		Channel, Retainer (also Order Item No.20)   (Replaces: 3374716)				$ 100.22

    View Diagram in Separate Window       Print Part List
