View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet Parts

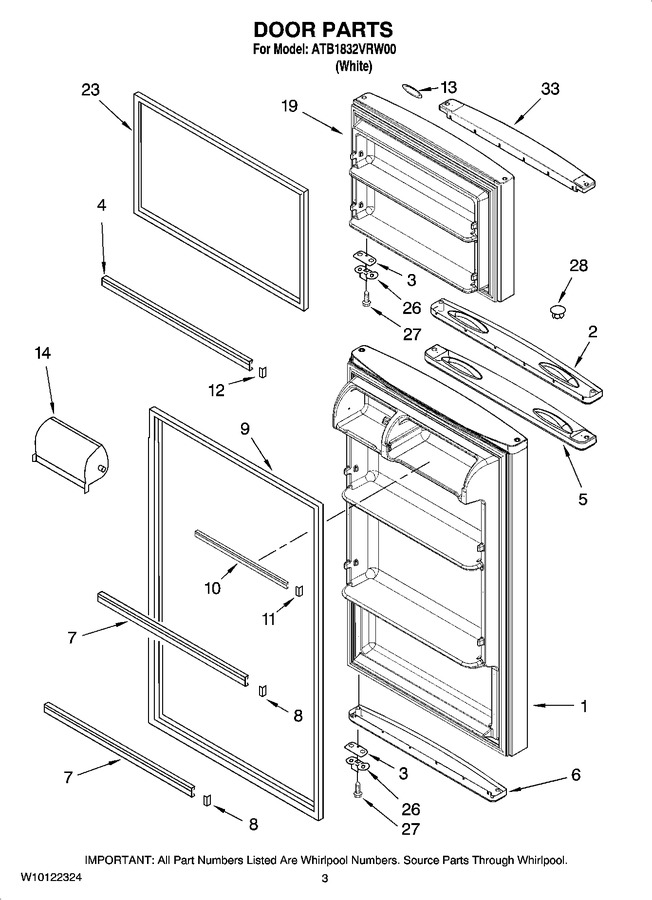

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316159W | Refrigerator Door (includes Illus. 5,6 & 9) (white) |
|
$ 479.27 | |||||
| 2 | 2265645W | Handle, Freezer (white) (Replaces: 2265646W) |
|
$ 219.98 | |||||
| 3 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 4 | WP2266727 | Trim, Door Shelf (Replaces: 2266727) |
|
Immediately | $ 92.50 | ||||
| 5 | 2265645W | Handle, Refrigerator (white) |
|
$ 219.98 | |||||
| 6 | 2265647W | Endcap, Bottom (white) |
|
$ 63.82 | |||||
| 7 | WP2266738 | Trim, Door Shelf (Replaces: 2266738) |
|
$ 111.69 | |||||
| 8 | WP2195916K | Endcap, Trim (Replaces: 2195916) |
|
Immediately | $ 13.18 | ||||
| 9 | WP2319264T | Door Gasket, Magnetic (beige) (Replaces: 2263258) |
|
Immediately | $ 192.71 | ||||
| 10 | W11129820 | Trim, Door Shelf (Replaces: 2266729) |
|
Immediately | $ 127.34 | ||||
| 11 | WP2156007 | Plug-trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 12 | WP2156003 | End Cap, Trim (Replaces: 2156003) |
|
Immediately | $ 13.25 | ||||
| 13 | 2325418 | Nameplate |
|
$ 44.68 | |||||
| 14 | WP2207942 | Door, Compartment (Replaces: 2207942) |
|
Immediately | $ 58.76 | ||||
| 19 | 2316367W | Freezer Door (includes Illus. 2,23 & 33) (white) |
|
$ 570.75 | |||||
| 23 | WP2319263T | Door Gasket, Magnetic (beige) (Replaces: 2263257) |
|
Immediately | $ 169.53 | ||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 33 | 2265644W | Endcap, Top (white) |
|
$ 148.05 |
