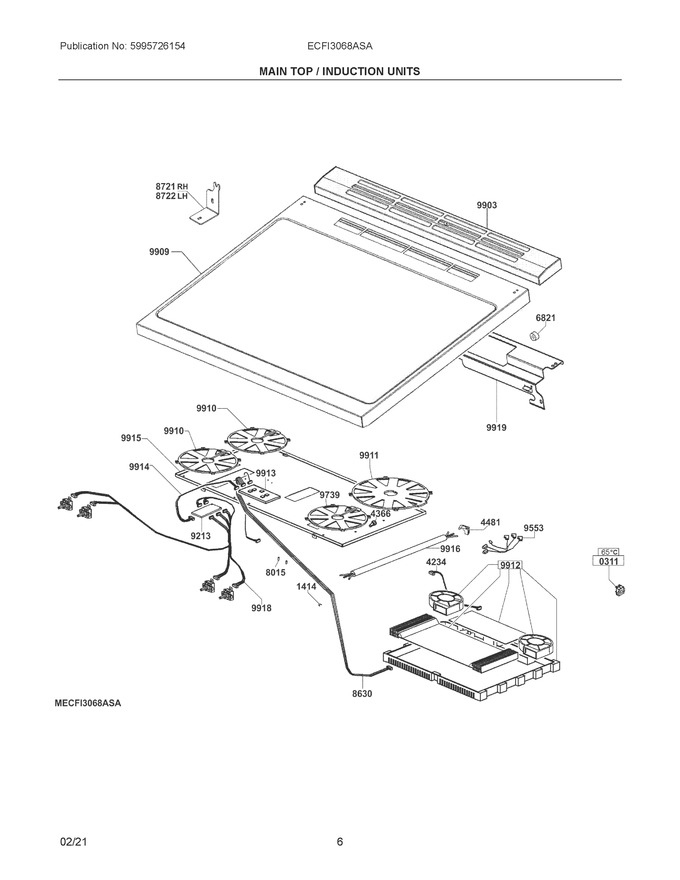

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
311	5304527778		Thermostat, Safety, 65 Deg. C				$ 82.96
1414	5304527775		Link, Junction Box		Appelez-nous	-
4234	5304527487		Harness, Wiring, Communication, Flat		Appelez-nous	-
4366	5304527776		Spacer, (7)		Appelez-nous	-
4481	5304527773		Clamp, Cable		Appelez-nous	-
6821	5304527440		Spacer, Frame, Rear, (2)				$ 23.51
8015	5304527772		Spacer, Electronic Unit, (3)		Appelez-nous	-
8630	5304527780		Harness, Wiring				$ 74.57
8721	5304527528		Bracket, Rh		Appelez-nous	-
8722	5304527529		Bracket, Lh		Appelez-nous	-
9213	5304527777		Pc Board, Potentiometers			Immediately	$ 95.77
9553	5304527786		Harness, Wiring, Thermostats				$ 72.05
9739	5304527774		Element, Induction, 5 7/10", 1400/2200 Watts		Appelez-nous	-
9903	5304527790		Trim, Cook Top, Stainless, Rear				$ 255.56
9909	4056030846		Smooth Top, Assembly, Glass/steel, Black/stainless   (Replaces: 5304527791)		Appelez-nous	-
9910	5304527792		Element, Induction, 7 1/10", 1850/3000 Watts, (2)			Immediately	$ 326.10
9911	5304527793		Element, Induction, 8 3/10", 2300/3700 Watts, (2)				$ 259.41
9912	5304527794		Generator Assembly, Induction, W/blower-hsing			Immediately	$ 1,040.54
9913	5304527795		Pc Board, Controls, Electronic Unit				$ 413.47
9914	5304527796		Harness, Wiring, Pot Board, To Elec. Board		Appelez-nous	-
9915	5304527797		Carrier Panel, Induction Units		Appelez-nous	-
9916	5304527798		Harness, Wiring		Appelez-nous	-
9918	5304527800		Harness, Wiring, Potentiometers, To Pc Board		Appelez-nous	-
9919	5304527569		Support, Cook Top, Rear		Appelez-nous	-
