01 - Cover Sheet

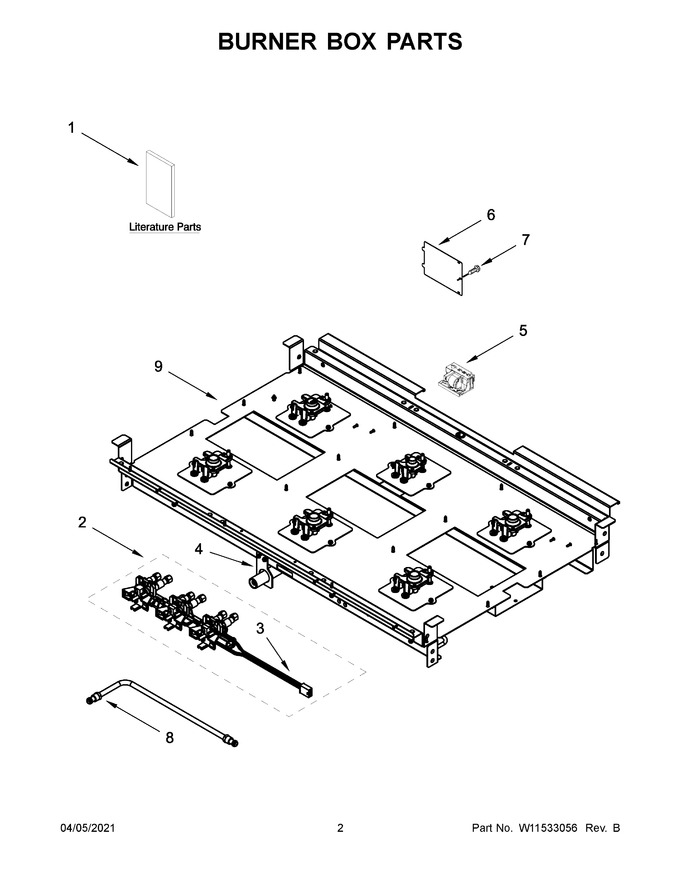

02 - Burner Box Parts


03 - Cooktop, Burner And Grate Parts


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11177370		Guide, Use And Care		Appelez-nous	-
2	W11384736		Assembly, Valve Manifold (left Front, Left Rear, Center Rear)   (Replaces: W10892995)			Immediately	$ 381.43
3	W10903729		Switch, Harness			Immediately	$ 191.74
4	W11320153		Bracket, Manifold   (Replaces: W11121194)				$ 79.97
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
6	W10115843		Cover, Ignition		Appelez-nous	-
7	7101P42660		Screw		Appelez-nous	-
8	W11335267		Tube, Manifold Supply (left)   (Replaces: W10892073)		Appelez-nous	-
9	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
1A	W11399237		Installation Instructions		Appelez-nous	-
1B	W11184759		Guide, Internet Connectivity		Appelez-nous	-
1C	W11202388		Diagram, Wiring		Appelez-nous	-
1D	W11202292		Sheet, Tech		Appelez-nous	-
1E	W11364680		Guide, Quick Start		Appelez-nous	-
2A	W11384739		Assembly, Valve Manifold (center Front, Right Front, Right Rear)   (Replaces: W10893005)			Immediately	$ 191.66
8A	W11384740		Tube, Manifold Supply (right)   (Replaces: W10892334)		Appelez-nous	-
NI	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
NI	W11502161		Kit, Lp Conversion   (Replaces: W11238042)			Immediately	$ 79.21
NI	W11200307		Harness, Main (36")				$ 237.00
NI	W11446239		Ignitor Wire, Wire-electrode Broil   (Replaces: W11311197)				$ 23.97
NI	W11446236		Ignitor Wire, Wire-electrode Bake   (Replaces: W11311196)				$ 21.16
NI	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 113.72
NI	W11200325		Harness, Communication				$ 116.19
NI	W11200332		Harness, Cooktop				$ 195.65
NI	W10624584		Cord, Power				$ 189.57
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	4450800		Screw, Grounding				$ 13.47
NI	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
