SELECT A DIAGRAM

01 - Cover Sheet


02 - Jar Assembly Parts

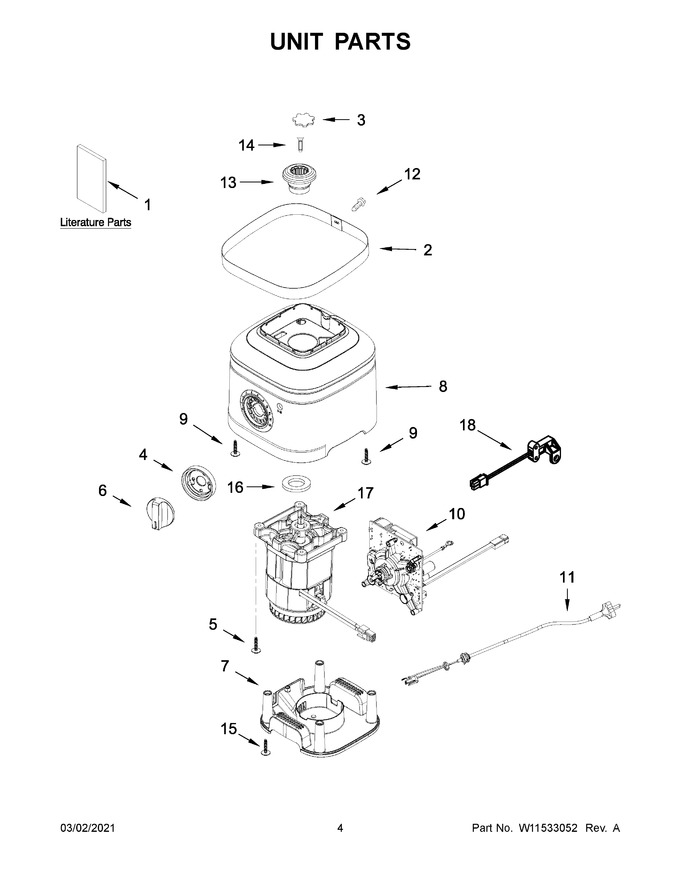

03 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11435379		Owner's Manual		Appelez-nous	-
2	W11354596		Trimband		Appelez-nous	-
3	W11486757		Plug, Coupler   (Replaces: W11219397)				$ 8.14
4	W11627537		Bezel, Rotary Switch   (Replaces: W11214276)		Appelez-nous	-
5	WP3395530		Screw   (Replaces: 697773)				$ 8.57
6	W11611304		Knob, Rotary Switch   (Replaces: W11357978)				$ 67.28
7	W11684609		Base   (Replaces: W11183716)		Appelez-nous	-
8	W11328603		Upper Base (imperial Black)		Appelez-nous	-
9	W10276642		Screw				$ 6.41
10	W11580223		Electronic Control   (Replaces: W11405623)		Appelez-nous	-
11	W11392826		Cord, Power (united Kingdom)		Appelez-nous	-
12	WP3196170		Screw   (Replaces: 3400617)				$ 7.55
13	W11627528		Coupler   (Replaces: W11294881)				$ 12.57
14	W11486756		Screw, Coupler   (Replaces: W11174445)		Appelez-nous	-
15	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
16	W11643384		Seal, Motor   (Replaces: W11211960)			Immediately	$ 23.63
17	W11443916		Motor   (Replaces: W11187673)		Appelez-nous	-
18	W11627538		Reed Switch   (Replaces: W11238803)		Appelez-nous	-
8A	W11328602		Upper Base (candy Apple)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
