SELECT A DIAGRAM

01 - Cover Sheet

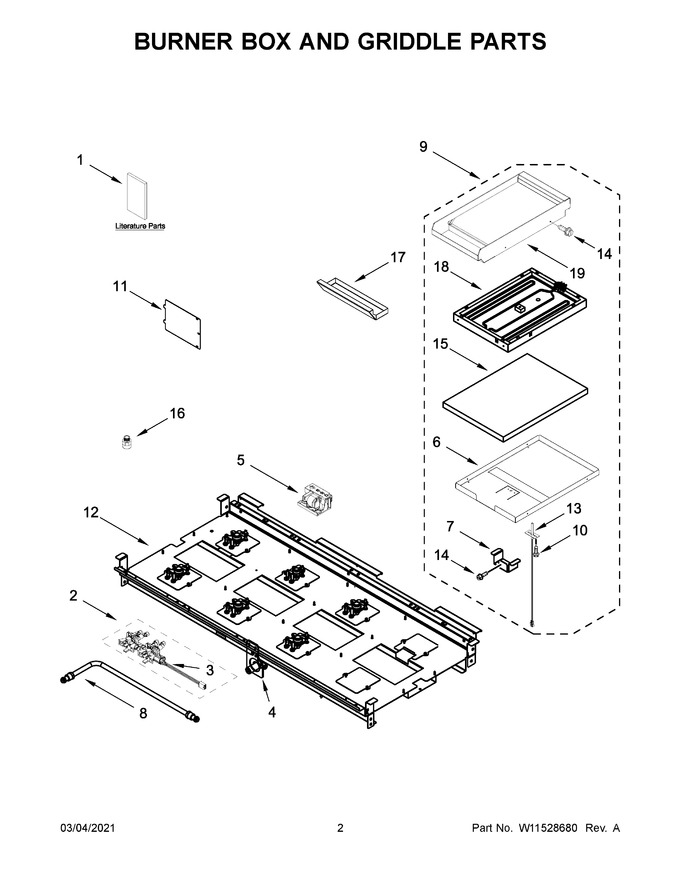

02 - Burner Box And Griddle Parts


03 - Cooktop, Burner And Grate Parts


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11114331		Guide, Use And Care		Appelez-nous	-
2	W11381267		Assembly, Valve Manifold (left Front And Left Rear)   (Replaces: W11183720)				$ 359.84
3	W11344433		Switch, Harness   (Replaces: W10903728)				$ 191.56
4	W11320153		Bracket, Manifold   (Replaces: W11121194)				$ 79.97
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
6	W11330430		Tray, Griddle Insulation		Appelez-nous	-
7	W11319226		Bracket, Griddle-rtd   (Replaces: W11121384)		Appelez-nous	-
8	W11397967		Tube, Manifold Supply (left)   (Replaces: W10892809)				$ 187.98
9	W11602621		Assembly, Griddle Module   (Replaces: W10891745)			Immediately	$ 1,547.02
10	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
11	W10115843		Cover, Ignition		Appelez-nous	-
12	NP		Tub Assembly (not Serviced)		Appelez-nous	-
13	W11319618		Sensor, Griddle   (Replaces: W10891584)				$ 228.48
14	W10162096		Screw				$ 21.90
15	W11319228		Insulation, Griddle   (Replaces: W11121383)		Appelez-nous	-
16	4453116		Adapter, Male				$ 179.43
17	W10276497		Tray, Griddle Drip				$ 404.03
18	W11319602		Element, Griddle   (Replaces: W10891698)				$ 369.48
19	W11602622		Module, Griddle   (Replaces: W10891567)		Appelez-nous	-
1A	W11114334		Instructions, Installation		Appelez-nous	-
1B	W11184759		Guide, Internet Connectivity		Appelez-nous	-
1C	W11114332		Guide, Quick Start		Appelez-nous	-
1D	W11202393		Diagram, Wiring		Appelez-nous	-
1E	W11202387		Diagram, Wiring (oven)		Appelez-nous	-
1F	W11202289		Sheet, Tech		Appelez-nous	-
2A	W11381269		Assembly, Valve Manifold (left Center Front And Left Center Rear)   (Replaces: W11036612)				$ 344.56
2B	W11378578		Assembly, Valve Manifold (right Center Front And Right Center Rear)   (Replaces: W10892994)			Immediately	$ 226.61
8A	W11397968		Tube, Manifold Supply (left Center)   (Replaces: W10892804)		Appelez-nous	-
8B	W11397969		Tube, Manifold Supply (right Center)   (Replaces: W10892805)		Appelez-nous	-
NI	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 20.21
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	4450800		Screw, Grounding				$ 13.47
NI	W11317788		Harness, Cooktop   (Replaces: W11200329)			Immediately	$ 206.07
NI	W11317786		Harness, Communication   (Replaces: W11200318)			Immediately	$ 131.85
NI	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
NI	NP		Tub Assembly (not Serviced)		Appelez-nous	-
NI	W11317789		Harness, Main (18")   (Replaces: W11200311)				$ 248.36
NI	W11200302		Harness, Main (30")				$ 282.31
NI	W11321066		Cord, Power   (Replaces: W11212216)				$ 118.94
NI	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 113.72
NI	W11317787		Harness, Griddle   (Replaces: W10903727)				$ 116.76
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W11502161		Kit, Lp Conversion   (Replaces: W11238042)			Immediately	$ 79.21

    View Diagram in Separate Window       Print Part List
