SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts

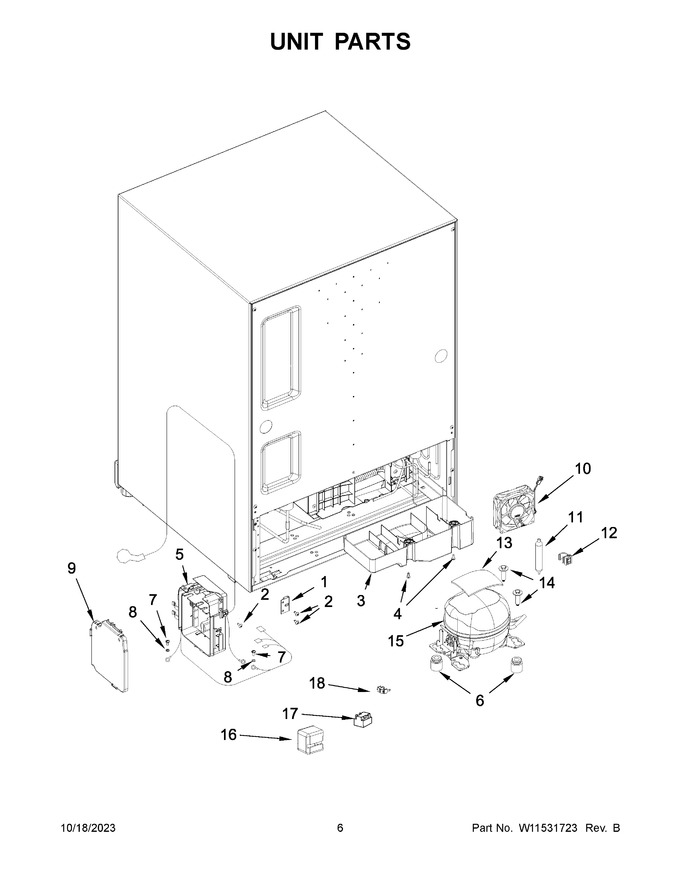

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10270517		Clamp, Cord				$ 79.51
2	W11371097		Screw		Appelez-nous	-
3	W11360241		Water Pan, Evaporator		Appelez-nous	-
4	W11375763		Screw		Appelez-nous	-
5	W11532957		Assembly, Pcb Box (includes Power Cord)				$ 455.57
6	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 8.47
7	4344826		Screw				$ 16.70
8	W11266077		Washer   (Replaces: W11265570)		Appelez-nous	-
9	W11313206		Cover, Pcb				$ 81.85
10	W11360536		Assembly, Fan Motor				$ 215.88
11	W11109499		Drier (service Drier Without Dye)   (Replaces: W10805035)			Immediately	$ 39.12
12	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
13	W11596025		Compressor, Rubber   (Replaces: W11360595)				$ 38.27
14	W10772873		Bolt		Appelez-nous	-
15	W11754545		Compressor   (Replaces: W11531824)				$ 775.36
16	W11579581		Cover   (Replaces: W11568820)		Appelez-nous	-
17	W11596023		Ptc Thermistor   (Replaces: W11422771)				$ 74.61
18	W11579512		Protector, Motor   (Replaces: W11568812)				$ 45.85
NI	ARIF916CC318E008C40755DF76F91C7B724		Refrigerant Charge 52 Grams (r600a)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
