SELECT A DIAGRAM

01 - Cover Sheet

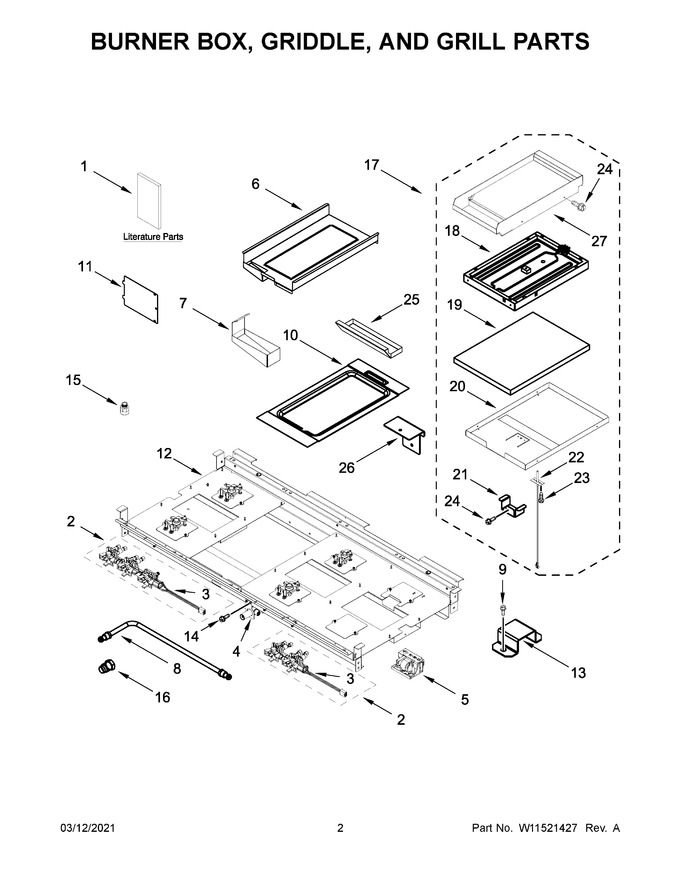

02 - Burner Box, Griddle, And Grill Parts


03 - Cooktop, Burner, Griddle, And Grill Parts


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11114330		Guide, Use And Care		Appelez-nous	-
2	W11328262		Assembly, Valve Manifold (left Front, Left Rear, And Grill)   (Replaces: W10893054)				$ 477.03
3	W11328263		Switch, Harness (left Front, Left Rear, And Grill)   (Replaces: W11106302)				$ 342.89
4	W11320153		Bracket, Manifold   (Replaces: W11121194)				$ 79.97
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
6	W11328011		Capture, Grill Grease   (Replaces: W11120957)		Appelez-nous	-
7	W11328012		Tray, Grill Drip   (Replaces: W11174414)		Appelez-nous	-
8	W11328963		Tube, Manifold Supply (left)   (Replaces: W10892796)		Appelez-nous	-
9	7101P43460		Screw		Appelez-nous	-
10	W11328372		Deflector, Grill Heat   (Replaces: W11120965)		Appelez-nous	-
11	W10115843		Cover, Ignition		Appelez-nous	-
12	NP		Box, Burner (not Serviced)		Appelez-nous	-
13	W11174418		Bracket, Grill Orifice Holder		Appelez-nous	-
14	7101P42660		Screw		Appelez-nous	-
15	4453116		Adapter, Male				$ 179.43
16	W10892063		Plug, Supply Outlet		Appelez-nous	-
17	W11602621		Assembly, Griddle Module   (Replaces: W10891745)			Immediately	$ 1,547.02
18	W11319602		Element, Griddle   (Replaces: W10891698)				$ 369.48
19	W11319228		Insulation, Griddle   (Replaces: W11121383)		Appelez-nous	-
20	W11330430		Tray, Griddle Insulation		Appelez-nous	-
21	W11319226		Bracket, Griddle-rtd   (Replaces: W11121384)		Appelez-nous	-
22	W11319618		Sensor, Griddle   (Replaces: W10891584)				$ 228.48
23	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
24	W10162096		Screw				$ 21.90
25	W10276497		Tray, Griddle Drip				$ 404.03
26	W11285353		Bracket, Grill Grease Capture		Appelez-nous	-
27	W11602622		Module, Griddle   (Replaces: W10891567)		Appelez-nous	-
1A	W11114333		Instructions, Installation		Appelez-nous	-
1B	W11177312		Guide, Quick Start		Appelez-nous	-
1C	W11184746		Guide, Internet Connectivity		Appelez-nous	-
1D	W11266584		Diagram, Wiring (cooktop)		Appelez-nous	-
1E	W11202370		Diagram, Wiring (oven)		Appelez-nous	-
1F	W11202265		Sheet, Tech		Appelez-nous	-
2A	W11320019		Assembly, Valve Manifold (right Center Front And Right Center Rear)   (Replaces: W10893058)			Immediately	$ 448.95
3A	W11320016		Switch, Harness (right Center Front And Right Center Rear)   (Replaces: W11106300)			Immediately	$ 270.82
8A	W11320139		Tube, Manifold Supply (right Center)   (Replaces: W10892789)		Appelez-nous	-
NI	4450800		Screw, Grounding				$ 13.47
NI	W11317786		Harness, Communication   (Replaces: W11200318)			Immediately	$ 131.85
NI	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
NI	NP		Box, Burner (not Serviced)		Appelez-nous	-
NI	W11200333		Harness, Cooktop		Appelez-nous	-
NI	W11428599		Kit, Lp Conversion   (Replaces: W11238041)			Immediately	$ 47.84
NI	W11321066		Cord, Power   (Replaces: W11212216)				$ 118.94
NI	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 113.72
NI	W11317790		Harness, Main (30")   (Replaces: W11200315)				$ 247.76
NI	W11317789		Harness, Main (18")   (Replaces: W11200311)				$ 248.36
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W11317787		Harness, Griddle   (Replaces: W10903727)				$ 116.76
NI	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 20.21
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
