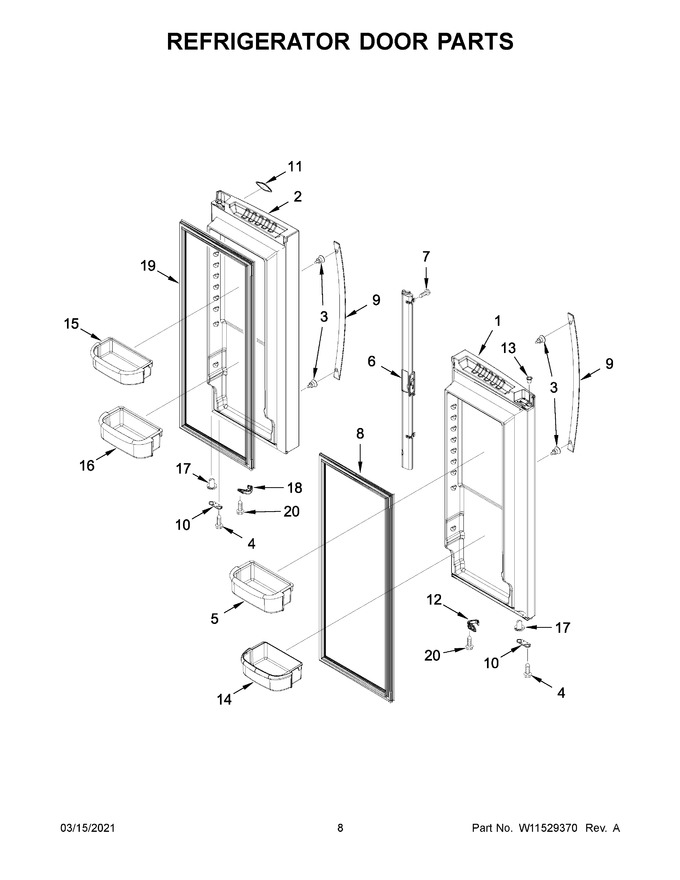

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107886WQ | Door, Refrigerator (left Hand White) (Replaces: 13107886W) |
|
$ 972.28 | |||||
| 2 | 13107885WQ | Door, Refrigerator (right Hand White) (Replaces: 13107885W) |
|
$ 1,013.25 | |||||
| 3 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 4 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 5 | WPW10351081 | Bucket, Small (Replaces: W10351081) |
|
Immediately | $ 73.03 | ||||
| 6 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 261.21 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830287 | Gasket, Door (left Hand White) |
|
Immediately | $ 173.36 | ||||
| 9 | W11127179 | Handle, Door (white) (Replaces: W11101973) |
|
Immediately | $ 190.44 | ||||
| 10 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 12 | W10918118 | Latch, Door Closer (left Hand White) (Replaces: W10833740) |
|
$ 17.01 | |||||
| 13 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 14 | WP12918704 | Bucket, Gallon (clear) (Replaces: 12918704) |
|
Immediately | $ 87.02 | ||||
| 15 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 81.09 | ||||
| 16 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 17 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 18 | W10918120 | Latch, Door Closer (right Hand White) (Replaces: W10833738) |
|
Immediately | $ 17.01 | ||||
| 19 | W10830189 | Gasket, Door (right Hand White) |
|
Immediately | $ 228.91 | ||||
| 20 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 10A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 12A | W10918170 | Latch, Door Closer (left Hand Black) (Replaces: W10725268) |
|
$ 17.64 | |||||
| 17A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 18A | W10918171 | Latch, Door Closer (right Hand Black) (Replaces: W10725267) |
|
$ 17.61 | |||||
| 19A | W11368721 | Gasket, Door (right Hand Black) (Replaces: W10830206) |
|
Immediately | $ 169.21 | ||||
| 1A | 13107886BQ | Door, Refrigerator (left Hand Black) (Replaces: 13107886B) |
|
$ 1,011.64 | |||||
| 2A | 13107885BQ | Door, Refrigerator (right Hand Black) (Replaces: 13107885B) |
|
$ 1,126.14 | |||||
| 6A | WP12722803B | Mullion, Door (black) (Replaces: 12722803BN) |
|
Immediately | $ 206.80 | ||||
| 8A | W10830289 | Gasket, Door (left Hand Black) |
|
Immediately | $ 204.87 | ||||
| 9A | W11123097 | Handle, Door (black) (Replaces: W11101974) |
|
$ 190.44 |
