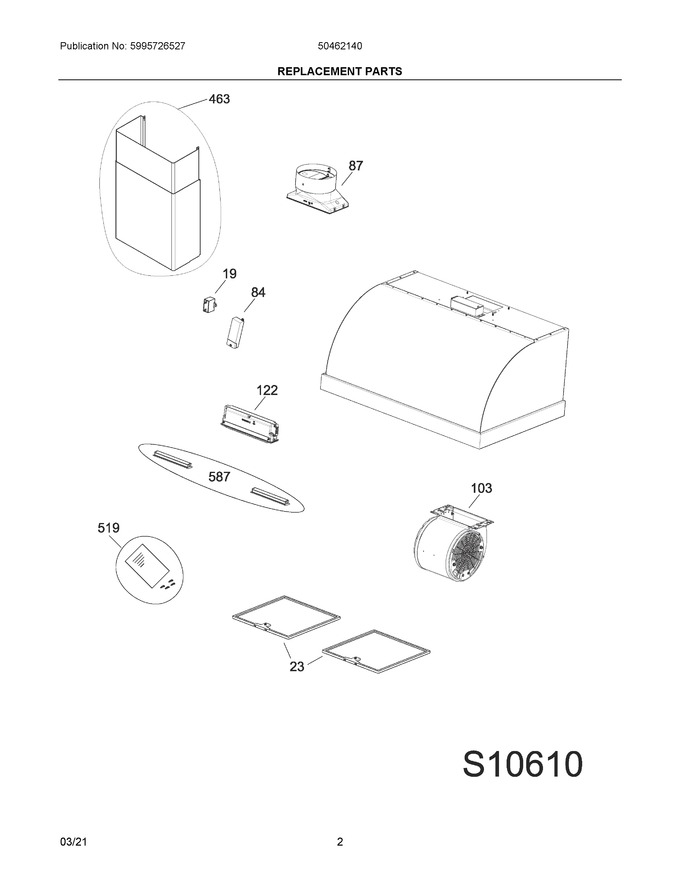

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 19 | 5304523602 | Capacitor |
|
- | |||||
| 23 | 5304464265 | Filter, Grease |
|
$ 108.76 | |||||
| 84 | 5304529202 | Transformer |
|
- | |||||
| 87 | 5304523604 | Connector, Pipe Or Tubing |
|
- | |||||
| 103 | 5304529203 | Motor |
|
- | |||||
| 122 | 5304529208 | Slider Assembly |
|
- | |||||
| 463 | 5304529209 | Chimney, Upper And Lower |
|
- | |||||
| 519 | 5304529210 | Document |
|
- | |||||
| 587 | 5304523611 | Lamp |
|
$ 229.79 |
