SELECT A DIAGRAM

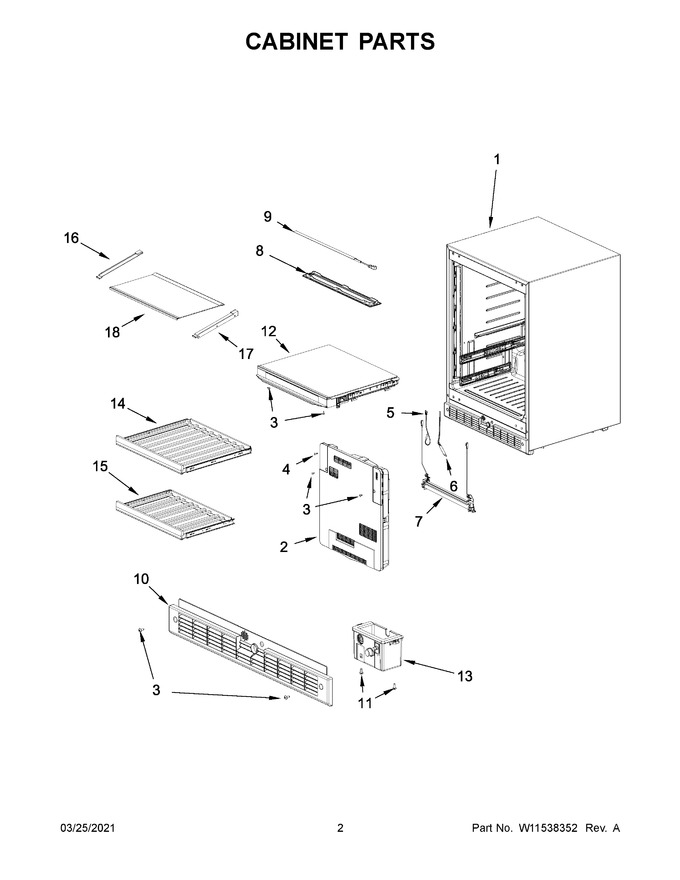

01 - Cover Sheet


02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	W11532990		Assembly, Evaporator Cover (includes Fan Motor, Damper And Sensor)				$ 398.86
3	W11675284		Screw   (Replaces: W11371095)				$ 15.94
4	W11375760		Screw		Appelez-nous	-
5	W11266076		Sensor, Defrost   (Replaces: W11263884)				$ 121.67
6	W11359415		Fuse, Temperature				$ 109.28
7	W11359416		Defrost Holder And Heater		Appelez-nous	-
8	W11312450		Cover, Led		Appelez-nous	-
9	W11497301		Assembly, Led   (Replaces: W11492253)				$ 82.06
10	W11360218		Kick, Plate				$ 121.28
11	W11371097		Screw		Appelez-nous	-
12	W11554513		Separator   (Replaces: W11539040)				$ 763.83
13	W11359433		Assembly, Switch Box				$ 152.89
14	W11532973		Upper, Wine Rack		Appelez-nous	-
15	W11532980		Lower, Wine Rack				$ 367.72
16	W10797332		Support, Shelf (left Hand)				$ 30.15
17	W10797333		Support, Shelf (right Hand)				$ 30.15
18	W11538058		Tray, Glass				$ 102.59

    View Diagram in Separate Window       Print Part List
