SELECT A DIAGRAM

01 - Cover Sheet


02 - Color Variation Parts


03 - Case, Gearing And Planetary Unit Parts


04 - Motor And Control Unit Parts

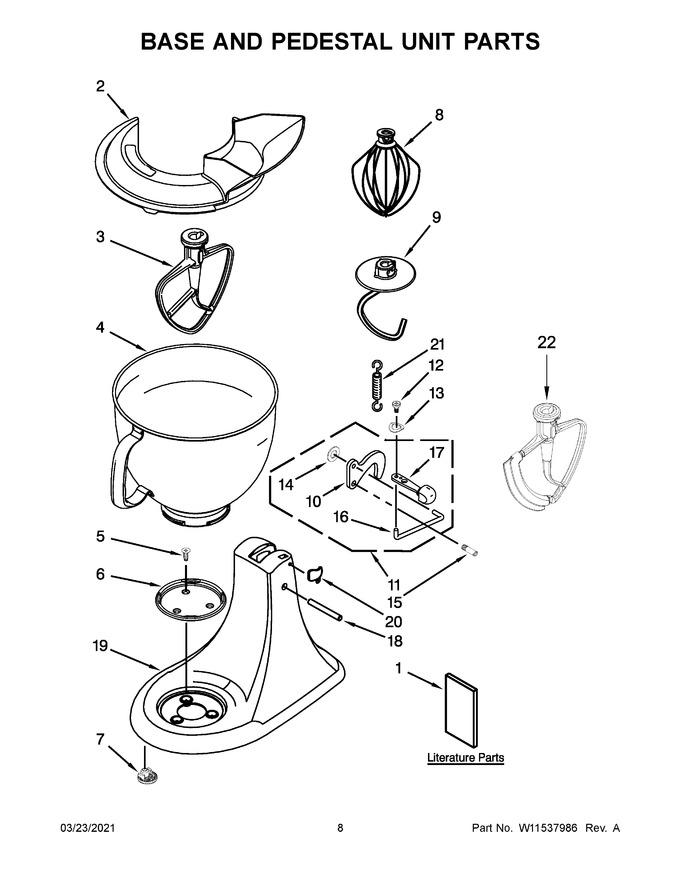

05 - Base And Pedestal Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11427792		Use And Care Guide (japan)		Appelez-nous	-
2	W11312468		Shield, Pouring   (Replaces: W11298367)				$ 43.26
3	WPW10672617		Beater, Flat (coated)   (Replaces: W10672617)			Immediately	$ 24.92
4	W11324096		Bowl, 5 Quart   (Replaces: W10245282)				$ 94.62
5	W11544572		Screw   (Replaces: 3400020)				$ 8.41
6	WPW10191926		Cap, Bowl Screw   (Replaces: W10191926)			Immediately	$ 19.03
7	WP9709707		Foot   (Replaces: 9709707)			Immediately	$ 4.42
8	WP9704329		Whip, Wire   (Replaces: 9704329)			Immediately	$ 29.90
9	WPW10674618		Hook, Dough (coated)   (Replaces: W10674618)			Immediately	$ 31.90
10	W11246352		Latch   (Replaces: 9709055)				$ 8.57
11	WP3184200		Latch, Link Assembly (black)   (Replaces: 3184200)				$ 13.44
12	6011-006971		Screw   (Replaces: 110679)			Immediately	$ 3.59
13	WP116241		Washer, Spring   (Replaces: 116241)				$ 5.19
14	W11218705		Washer   (Replaces: 8533912)				$ 4.55
15	W10802060		Screw   (Replaces: W10572158)				$ 5.21
16	W11232016		Link, Latch   (Replaces: 24450)				$ 7.83
17	WP9709267		Lever, Latch (black)   (Replaces: 9709267)				$ 4.00
18	WP16910		Pin, Hinge   (Replaces: 16910)			Immediately	$ 4.87
19	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
20	WP3184264		Head Lock (black)   (Replaces: 3184264)				$ 8.20
21	W11188450		Spring, Lock Lever   (Replaces: W10509949)		Appelez-nous	-
22	W10917788		Beater, Flex Edge   (Replaces: W10672622)				$ 73.48
NI	NP		Cabinet (not A Serviceable Part)		Appelez-nous	-
NI	W11681930		Bowl, 3 Quart   (Replaces: W10713675)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
