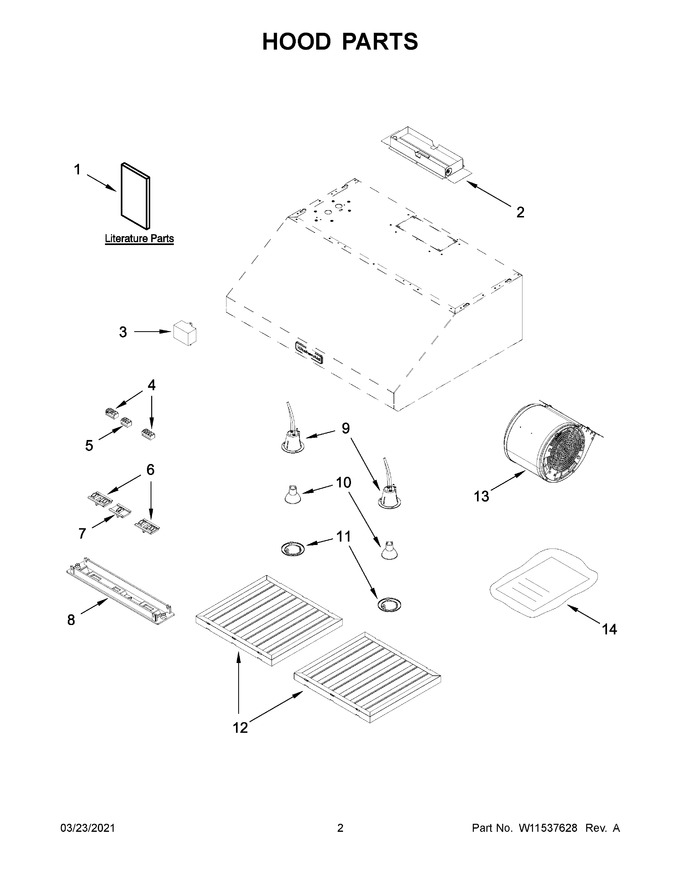

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11374534 | Owners Manual |
|
- | |||||
| 2 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 195.58 | |||||
| 3 | W11715950 | Capacitor (25 Mf) (Replaces: W11245979) |
|
Immediately | $ 101.70 | ||||
| 4 | W10853393 | Switch, Rocker (motor) (Replaces: W10351916) |
|
Immediately | $ 205.37 | ||||
| 5 | W11193832 | Switch, Rocker (on/off) (Replaces: W10351915) |
|
$ 215.60 | |||||
| 6 | W11569415 | Slider, Switch (Replaces: W11397923) |
|
Immediately | $ 30.31 | ||||
| 7 | W11662407 | Slider, Switch (Replaces: W11397924) |
|
Immediately | $ 42.32 | ||||
| 8 | W11387938 | Panel, Switch (Replaces: W11360634) |
|
Immediately | $ 148.80 | ||||
| 9 | W10295808 | Socket, Light |
|
Immediately | $ 110.92 | ||||
| 10 | W11800238 | Lamp, Led (Replaces: W11388445) |
|
Immediately | $ 87.63 | ||||
| 11 | W10351924 | Bezel, Lamp |
|
$ 197.59 | |||||
| 12 | W10351890 | Filter, Grease (30" Model Only) |
|
$ 117.92 | |||||
| 13 | WPW10293966 | Assembly, Fan (Replaces: W10293966) |
|
Immediately | $ 618.78 | ||||
| 14 | W10351917 | Hardware, Install |
|
$ 58.37 | |||||
| 12A | W10351892 | Filter, Grease (36" Model Only) |
|
$ 269.64 |
