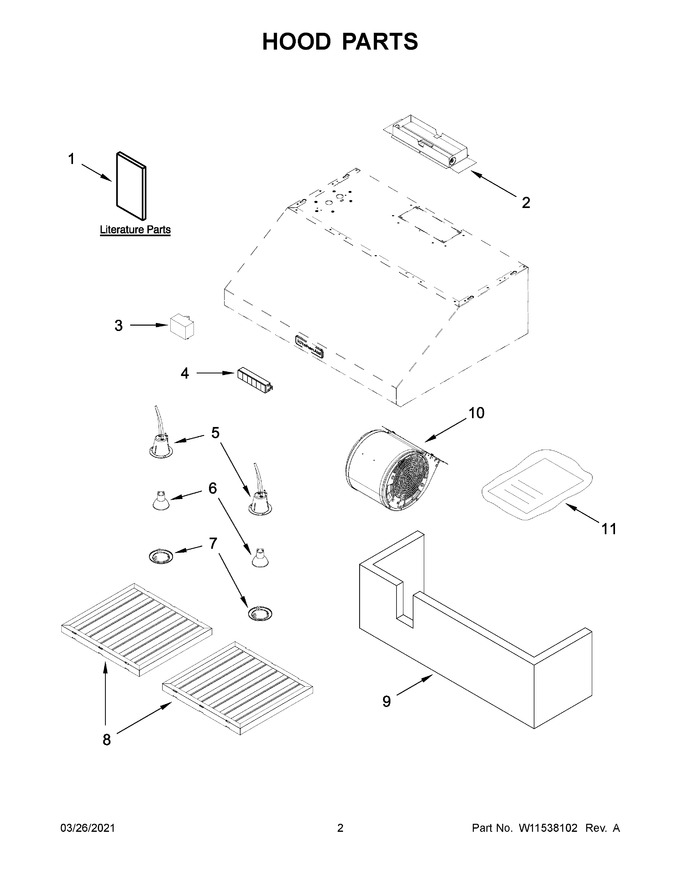

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11423733 | Owner's Manual |
|
- | |||||
| 2 | W11516461 | Damper (Replaces: W11512452) |
|
Immediately | $ 121.03 | ||||
| 3 | W11715950 | Capacitor (25 Mf) (Replaces: W11245979) |
|
Immediately | $ 101.70 | ||||
| 4 | W11516463 | Control (Replaces: W11514909) |
|
$ 366.38 | |||||
| 5 | W11512046 | Housing, Lamp |
|
- | |||||
| 6 | W11800238 | Lamp, Led (Replaces: W11388445) |
|
Immediately | $ 87.63 | ||||
| 7 | W10351924 | Bezel, Lamp |
|
$ 197.59 | |||||
| 8 | W10351890 | Filter, Grease (30" Model Only) |
|
$ 117.92 | |||||
| 9 | W11518271 | Insulation (30" Model Only) (Replaces: W11514915) |
|
- | |||||
| 10 | W11035826 | Blower, Fan (Replaces: W10727058) |
|
Immediately | $ 384.08 | ||||
| 11 | W11514919 | Installation Hardware Kit (30" Model Only) (Replaces: W11514918) |
|
$ 113.42 | |||||
| 11A | W11514919 | Installation Hardware Kit (36" Model Only) |
|
$ 113.42 | |||||
| 8A | W10351892 | Filter, Grease (36" Model Only) |
|
$ 269.64 | |||||
| 9A | W11518272 | Insulation (36" Model Only) (Replaces: W11514916) |
|
- |
