01 - Cover Sheet

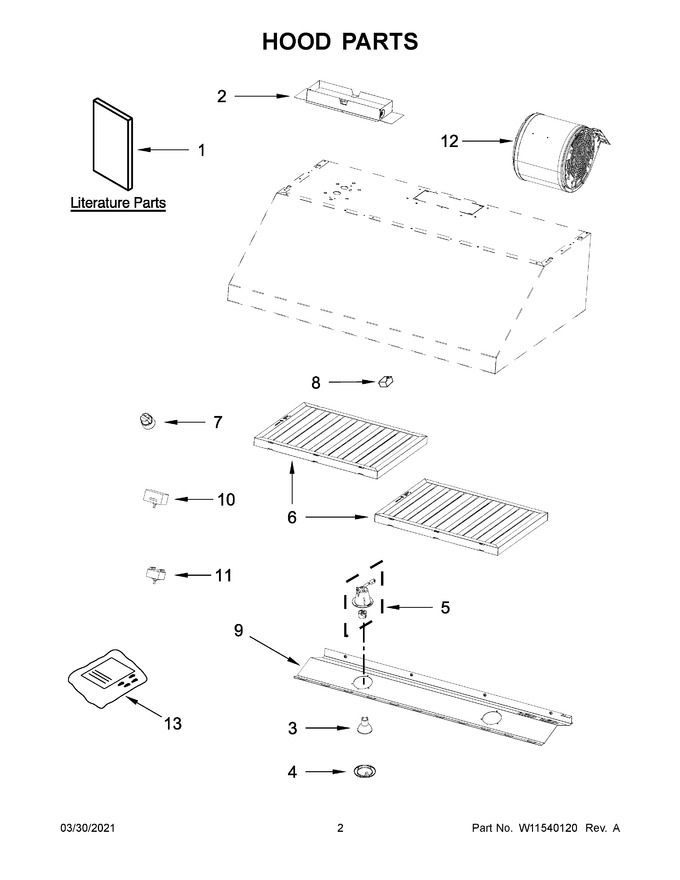

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11374533 | Owners Manual |
|
- | |||||
| 2 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 195.58 | |||||
| 3 | W11800238 | Lamp, Led (Replaces: W11388445) |
|
Immediately | $ 87.63 | ||||
| 4 | W10351924 | Bezel, Lamp |
|
$ 197.59 | |||||
| 5 | W10295808 | Socket, Light |
|
Immediately | $ 110.92 | ||||
| 6 | W10351890 | Filter, Grease (30" Model Only) |
|
$ 117.92 | |||||
| 7 | WPW10294009 | Knob (Replaces: W10294009) |
|
$ 72.22 | |||||
| 8 | W11715950 | Capacitor (25 Mf) (Replaces: W11245979) |
|
Immediately | $ 101.70 | ||||
| 9 | W10295809 | Control Panel (30" Model Only) |
|
$ 321.39 | |||||
| 10 | W10293968 | Switch, Light |
|
$ 128.15 | |||||
| 11 | W10293967 | Switch, Fan |
|
$ 136.67 | |||||
| 12 | WPW10293966 | Assembly, Fan (Replaces: W10293966) |
|
Immediately | $ 618.78 | ||||
| 13 | W10293969 | Hardware, Installation |
|
$ 58.23 | |||||
| 6A | W10351892 | Filter, Grease (36" Model Only) |
|
$ 269.64 | |||||
| 9A | W10295810 | Control Panel (36" Model Only) |
|
- |
