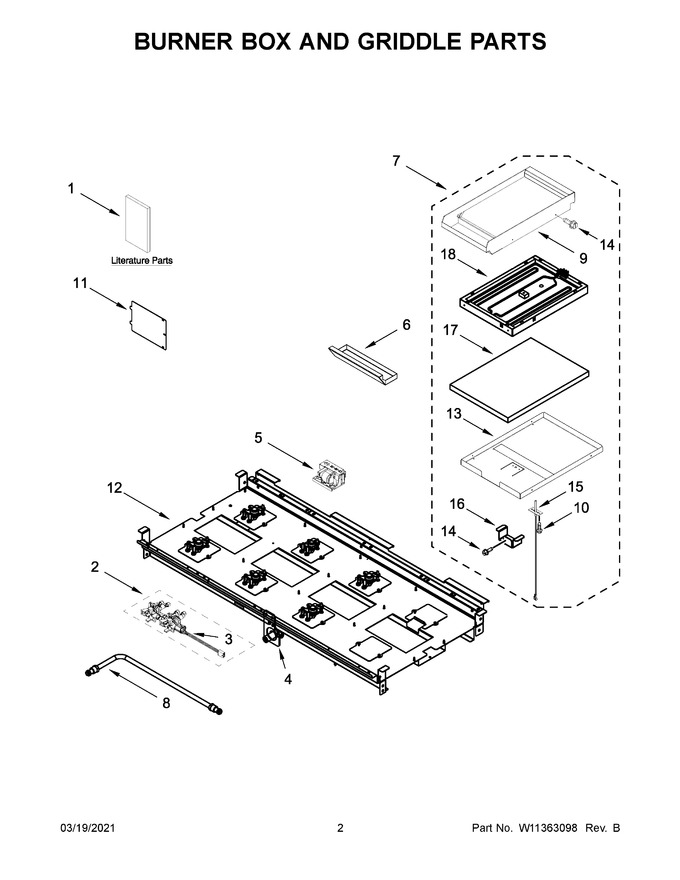

02 - Burner Box And Griddle Parts


03 - Cooktop, Burner, And Griddle Parts


04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11177275		Guide, Use And Care		Appelez-nous	-
2	W11320017		Assembly, Valve Manifold (right Front And Right Rear)   (Replaces: W11183722)				$ 472.05
3	W11320016		Switch, Harness (right Center Front And Right Center Rear)   (Replaces: W11106300)			Immediately	$ 270.82
4	W11320153		Bracket, Manifold   (Replaces: W11121194)				$ 79.97
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
6	W10276497		Tray, Griddle Drip				$ 404.03
7	W11602621		Assembly, Griddle Module   (Replaces: W10891745)			Immediately	$ 1,547.02
8	W11320029		Tube, Manifold Supply (left)   (Replaces: W10892784)		Appelez-nous	-
9	W11602622		Module, Griddle   (Replaces: W10891567)		Appelez-nous	-
10	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
11	W10115843		Cover, Ignition		Appelez-nous	-
12	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
13	W11330430		Tray, Griddle Insulation		Appelez-nous	-
14	W10162096		Screw				$ 21.90
15	W11319618		Sensor, Griddle   (Replaces: W10891584)				$ 228.48
16	W11319226		Bracket, Griddle-rtd   (Replaces: W11121384)		Appelez-nous	-
17	W11319228		Insulation, Griddle   (Replaces: W11121383)		Appelez-nous	-
18	W11319602		Element, Griddle   (Replaces: W10891698)				$ 369.48
1A	W11177278		Instructions, Installation		Appelez-nous	-
1B	W11184746		Guide, Internet Connectivity		Appelez-nous	-
1C	W11177312		Guide, Quick Start		Appelez-nous	-
1D	W11202375		Diagram, Wiring		Appelez-nous	-
1E	W11202275		Sheet, Tech		Appelez-nous	-
2A	W11320019		Assembly, Valve Manifold (right Center Front And Right Center Rear)   (Replaces: W10893058)			Immediately	$ 448.95
2B	W11320025		Assembly, Valve Manifold (right Center Front And Right Center Rear)   (Replaces: W10893051)				$ 470.88
8A	W11320027		Tube, Manifold Supply (left Center)   (Replaces: W10892775)		Appelez-nous	-
8B	W11320139		Tube, Manifold Supply (right Center)   (Replaces: W10892789)		Appelez-nous	-
NI	W11446239		Ignitor Wire, Wire-electrode Broil   (Replaces: W11311197)				$ 23.97
NI	W11317787		Harness, Griddle   (Replaces: W10903727)				$ 116.76
NI	W11317788		Harness, Cooktop   (Replaces: W11200329)			Immediately	$ 206.07
NI	W11317786		Harness, Communication   (Replaces: W11200318)			Immediately	$ 131.85
NI	W11428599		Kit, Lp Conversion   (Replaces: W11238041)			Immediately	$ 47.84
NI	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 113.72
NI	W10624584		Cord, Power				$ 189.57
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	4450800		Screw, Grounding				$ 13.47
NI	W11200305		Harness, Main (48")				$ 386.91
NI	7101P48560		Screw, Anti-tip Kit		Appelez-nous	-
NI	W11446236		Ignitor Wire, Wire-electrode Bake   (Replaces: W11311196)				$ 21.16
NI	NP		Gearcase Motor Housing (refer To Color Variation Parts Page)		Appelez-nous	-
