01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Console Parts

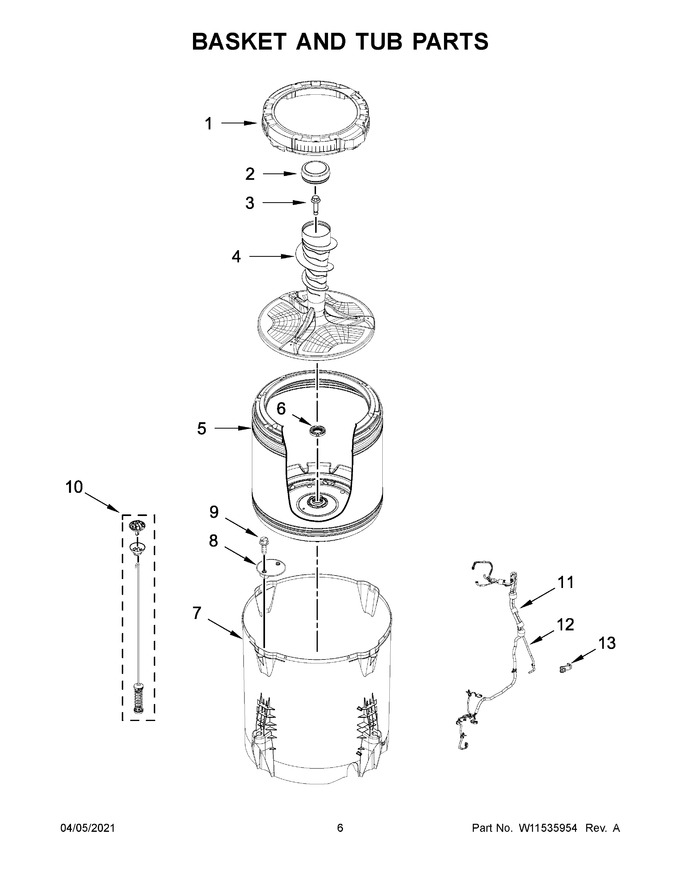

04 - Basket And Tub Parts
05 - Gearcase, Motor And Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662156 | Tub Ring (Replaces: W11094300) |
|
$ 78.10 | |||||
| 2 | W11269211 | Cap, Agitator |
|
$ 50.28 | |||||
| 3 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 9.37 | ||||
| 4 | W11550891 | Agitator (complete) (Replaces: W10821990) |
|
Immediately | $ 113.87 | ||||
| 5 | W11513243 | Basket Assembly (Replaces: W11459626) |
|
$ 445.43 | |||||
| 6 | W11551646 | Basket, Lock Nut (Replaces: W11183985) |
|
Immediately | $ 14.22 | ||||
| 7 | W11219115 | Tub |
|
Immediately | $ 387.09 | ||||
| 8 | W11568797 | Filter, Drain Pump (Replaces: W11089264) |
|
Immediately | $ 28.13 | ||||
| 9 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 8.26 | ||||
| 10 | W11396716 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11171694) |
|
Immediately | $ 211.37 | ||||
| 11 | W11591637 | Harness, Lower (Replaces: W11405458) |
|
Immediately | $ 145.39 | ||||
| 12 | WP353244 | Hose, Pressure Switch (Replaces: W10590949) |
|
Immediately | $ 59.93 | ||||
| 13 | W11755726 | Clip, Harness (Replaces: W11284522) |
|
Immediately | $ 7.72 |
