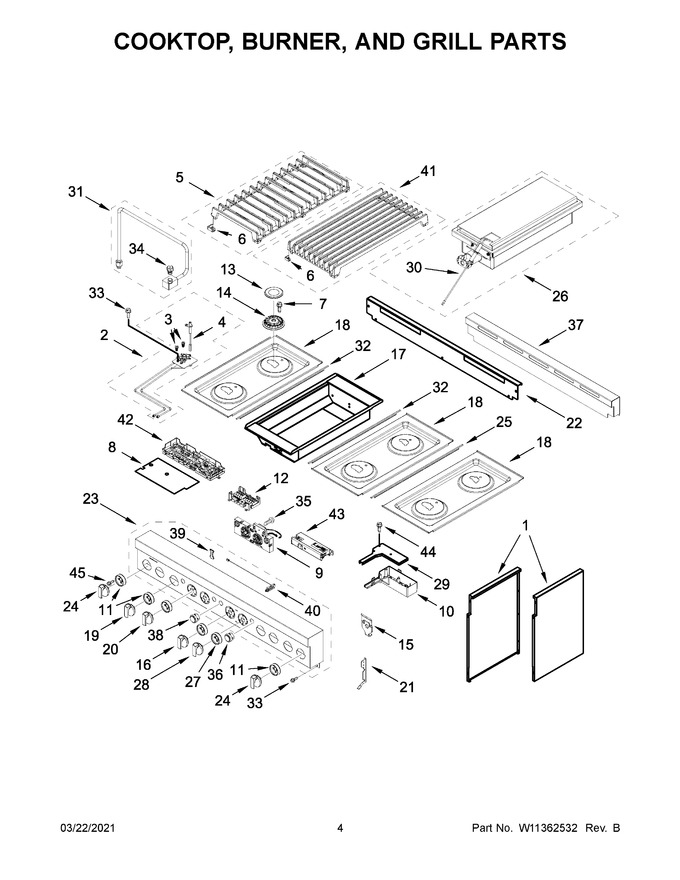

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11321067		Panel, Cabinet Side (left)   (Replaces: W11111429)				$ 439.37
2	W11319741		Assembly, Orifice Holder (left Front)   (Replaces: W10892807)				$ 121.66
3	W11643164		Orifice, Main (17.4k) (left Front And Right Center Front)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11573760		Igniter (all But Right Center Rear)   (Replaces: W11238757)			Immediately	$ 23.48
5	W11516449		Assembly, Grate (black (left))   (Replaces: W11172289)				$ 265.06
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11766499		Screw   (Replaces: W11323260)			Immediately	$ 12.72
8	W11320149		Barrier, Appliance Manager   (Replaces: W11281269)				$ 130.57
9	W11355248		Interface, User   (Replaces: W11219188)			Immediately	$ 591.49
10	W11320411		Cover, Wifi Outer   (Replaces: W11205795)		Appelez-nous	-
11	W11317889		Bezel, Cooktop (for 4 Cooktop Burners And Grill)   (Replaces: W11090284)				$ 106.87
12	W11355250		Manager, Appliance (expansion)   (Replaces: W10871065)				$ 451.62
13	W11319224		Cap, Burner (black (set Of 6))   (Replaces: W11121392)			Immediately	$ 252.20
14	W11319683		Spreader, Flame (high) (all But Right Center Rear)   (Replaces: W10891987)			Immediately	$ 250.69
15	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
16	W11397970		Knob, 30" Oven Mode (stainless)   (Replaces: W11317854)				$ 164.32
17	W11328566		Assembly, Grill Box   (Replaces: W11174429)		Appelez-nous	-
18	W11316700		Panel, Cooktop (black (left))   (Replaces: W11038237)				$ 502.01
19	W11328010		Knob, Grill (stainless)   (Replaces: W10894926)				$ 339.23
20	W11406544		Knob, 18" Oven Mode Gas (stainless)   (Replaces: W11325046)		Appelez-nous	-
21	W10130760		Bracket, Moving Console (left)				$ 75.94
22	W10323252		Trim, Island Insert				$ 207.83
23	W11444409		Panel, Console   (Replaces: W11253771)				$ 921.44
24	W11317537		Knob, Burner (for 4 Cooktop Burners) (stainless)   (Replaces: W10887596)			Immediately	$ 155.66
25	W10271524		Trim, T-strip (black)				$ 212.34
26	W11328568		Assembly, Grill Burner   (Replaces: W11120976)				$ 848.94
27	W11317892		Bezel, Oven (for 4 Oven Knobs) (stainless)   (Replaces: W11042375)				$ 110.74
28	W11406542		Knob, Oven Temperature (stainless (for 18" Oven))   (Replaces: W11325047)		Appelez-nous	-
29	W11320410		Cover, Wifi Inner   (Replaces: W11205794)		Appelez-nous	-
30	W11328571		Electrode, Grill   (Replaces: W11174598)		Appelez-nous	-
31	W11517686		Grill Orifice Holder Assembly (left Center)   (Replaces: W11419278)		Appelez-nous	-
32	W10291193		Trim, L-strip		Appelez-nous	-
33	7101P42660		Screw		Appelez-nous	-
34	W11419282		Orifice, Grill (18k) (left Center)		Appelez-nous	-
35	WP3400814		Screw   (Replaces: 3400814)				$ 4.62
36	W11319196		Button Assembly, Oven Start   (Replaces: W11090650)				$ 23.67
37	W11516014		Island Trim   (Replaces: W11476244)				$ 443.60
38	W11318857		Button Assembly, Oven Light   (Replaces: W11090651)				$ 23.81
39	W11318856		Assembly, Light Pipe   (Replaces: W10896369)				$ 109.35
40	W11318855		Antenna, Wifi   (Replaces: W11130078)				$ 228.92
41	W11516484		Assembly, Grill Grate   (Replaces: W11172682)				$ 379.68
42	W11355923		Manager, Appliance (powermax)   (Replaces: W11100278)				$ 469.32
43	W11234290		Assembly, Wifi Module   (Replaces: W11110768)				$ 179.89
44	7101P62460		Screw		Appelez-nous	-
45	W11509770		Screw   (Replaces: W11328357)				$ 14.23
14A	W11319673		Spreader, Flame (low) (right Center Rear)   (Replaces: W10892022)			Immediately	$ 229.46
18A	W11316701		Panel, Cooktop (black (right Center))   (Replaces: W11038241)				$ 502.01
18B	W11328008		Panel, Cooktop (black (right))   (Replaces: W11038254)				$ 475.25
1A	W11320596		Panel, Cabinet Side (right)   (Replaces: W11111428)				$ 450.31
21A	W10130759		Bracket, Moving Console (right)				$ 75.94
28A	W11317539		Knob, Oven Temperature (stainless (for 30" Oven))   (Replaces: W10891868)				$ 154.22
2A	W11319746		Assembly, Orifice Holder (left Rear)   (Replaces: W10892495)				$ 123.91
2B	W11327979		Assembly, Orifice Holder (right Center Front)   (Replaces: W10892471)				$ 125.69
2C	W11327980		Assembly, Orifice Holder (right Center Rear)   (Replaces: W10892724)		Appelez-nous	-
2D	W11327981		Assembly, Orifice Holder (right Front)   (Replaces: W10892726)		Appelez-nous	-
2E	W11327982		Assembly, Orifice Holder (right Rear)   (Replaces: W10892474)		Appelez-nous	-
3A	W10892418		Orifice, Main (15.4k) (left Rear)			Immediately	$ 103.03
3B	W10892440		Orifice, Main (7.2k) (right Center Rear)				$ 99.86
3C	W11661909		Orifice, Simmer (2.6k) (all But Right Center Rear)   (Replaces: W10892435)			Immediately	$ 74.14
3D	W10892429		Orifice, Simmer (2.0k) (right Center Rear)				$ 99.86
4A	W11238756		Igniter (right Center Rear)			Immediately	$ 67.96
5A	W11516481		Assembly, Grate (black (right Center))   (Replaces: W11172654)				$ 260.06
5B	W11516462		Assembly, Grate (black (right Center))   (Replaces: W11172625)				$ 265.07
