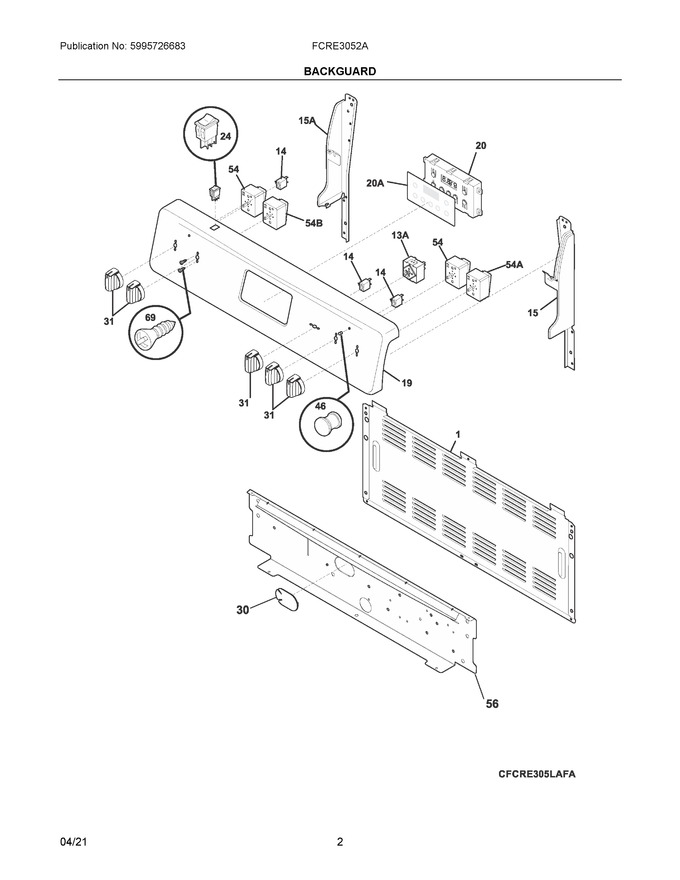

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield, Backguard, Rear Wall				$ 64.04
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 59.52
15	5304493644		Cap, End, Black, Rh				$ 74.15
19	5304520702		Panel, Control, Black		Appelez-nous	-
20	5304521889		Control, Electronic, Es100			Immediately	$ 330.46
24	5304527841		Switch Rocker, Black			Immediately	$ 12.64
30	316577600		Plug, Button, Oval, Harness				$ 16.54
31	5304508956		Knob, Control, Black			Immediately	$ 67.41
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 18.63
54	316436000		Switch, Infinite, Small Element			Immediately	$ 89.27
56	316234045		Shield, Backguard, Black, Inner				$ 74.15
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.47
13A	5304522964		Switch, Infinite, Warmer			Immediately	$ 65.73
15A	5304493646		Cap, End, Black, Lh			Immediately	$ 74.15
20A	316220729		Overlay, Clock, Black			Immediately	$ 29.92
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 57.42
54B	140173679014		Switch, Infinite, Radiant Dual   (Replaces: 5304522918)			Immediately	$ 37.01
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 30.55
NI	5308014215		Screw, 6-20 X 0.312				$ 2.53
NI	316089500		Screw, 10-16 X .486				$ 14.96
