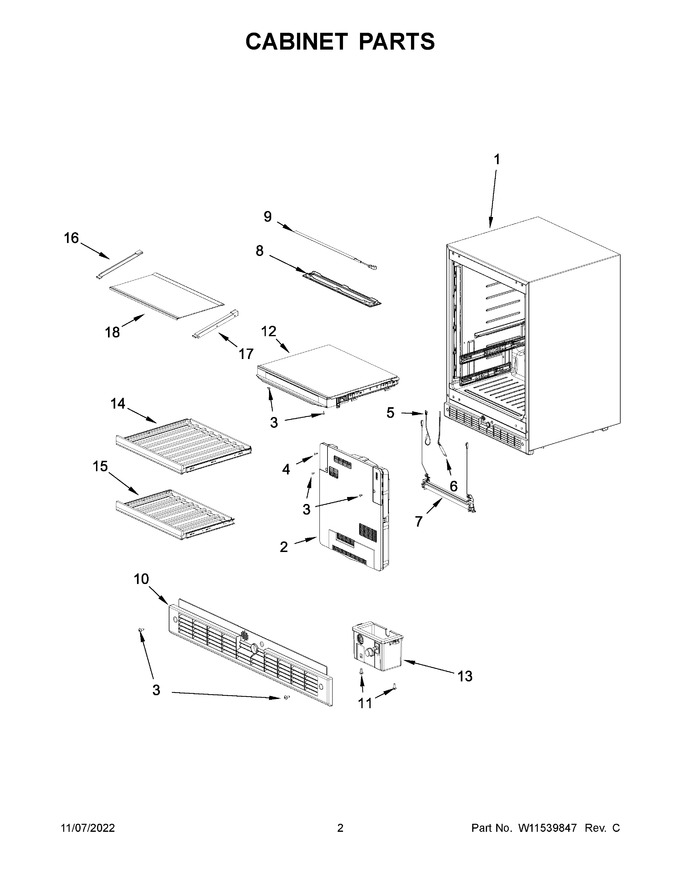

02 - Cabinet Parts
03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| 2 | W11532990 | Assembly, Evaporator Cover (includes Fan Motor, Damper And Sensor) |
|
$ 398.86 | |||||
| 3 | W11675284 | Screw (Replaces: W11371095) |
|
$ 15.94 | |||||
| 4 | W11375760 | Screw |
|
- | |||||
| 5 | W11266076 | Sensor, Defrost (Replaces: W11263884) |
|
$ 121.67 | |||||
| 6 | W11359415 | Fuse, Temperature |
|
$ 109.28 | |||||
| 7 | W11359416 | Defrost Holder And Heater |
|
- | |||||
| 8 | W11312450 | Cover, Led |
|
- | |||||
| 9 | W11497301 | Assembly, Led (Replaces: W11492253) |
|
$ 82.06 | |||||
| 10 | W11360218 | Kick, Plate |
|
$ 121.28 | |||||
| 11 | W11371097 | Screw |
|
- | |||||
| 12 | W11537984 | Separator |
|
$ 599.19 | |||||
| 13 | W11359433 | Assembly, Switch Box |
|
$ 152.89 | |||||
| 14 | W11532969 | Upper, Wine Rack |
|
Immediately | $ 423.18 | ||||
| 15 | W11532977 | Lower, Wine Rack |
|
$ 510.26 | |||||
| 16 | W10797332 | Support, Shelf (left Hand) |
|
$ 30.15 | |||||
| 17 | W10797333 | Support, Shelf (right Hand) |
|
$ 30.15 | |||||
| 18 | W11547158 | Tray, Glass (Replaces: W11538045) |
|
$ 107.80 |
