Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11378281 Thermostat, Cavity Special Order $ 37.39

2 W11455475 Board, Noise Filter   (Replaces: W11425905) Special Order $ 132.32

3 W10313274 Bracket, Noise Filter Special Order $ 32.32

4 W11752349 Cover, Cooling Fan   (Replaces: W11088345) Special Order $ 28.34

5 W11088354 Wheel, Cooling Fan In-Stock Immediately $ 100.03

6 W11213349 Housing, Cooling Fan   (Replaces: W11088352) Special Order $ 81.13

7 W11545874 Motor, Cooling Fan   (Replaces: W11490447) Special Order $ 90.53

8 W11213318 Capacitor, High Voltage   (Replaces: W11196080) Special Order $ 192.01

9 W11095808 Bracket, Capacitor Appelez-nous -
10 W11817793 Diode, High Voltage   (Replaces: W10492278) Appelez-nous -
11 W11088358 Air Guide, Magnetron Appelez-nous -
12 W11628655 Transformer, High Voltage   (Replaces: W11334531) In-Stock Immediately $ 350.91

13 W11493414 Assembly, Interlock (includes Switches)   (Replaces: W11479930) In-Stock Immediately $ 62.22

14 W11545873 Motor, Door Eject   (Replaces: W11511670) In-Stock Immediately $ 42.71

15 W11164809 Chassis, Transformer Special Order $ 130.06

16 W11440761 Plate, Chassis Appelez-nous -
17 W11449943 Plate, Bottom Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

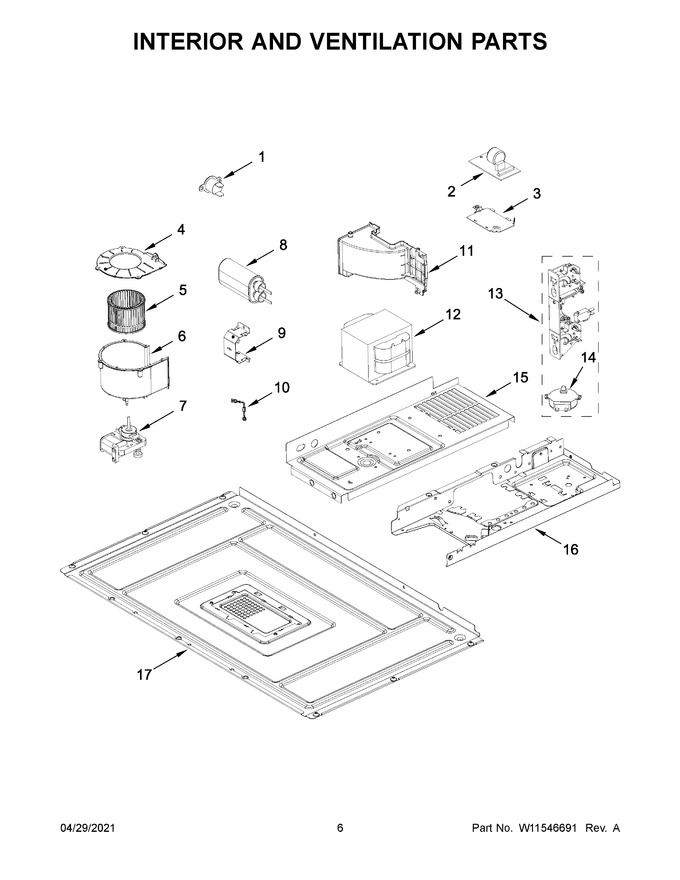

Diagram for WMT50011KS01
