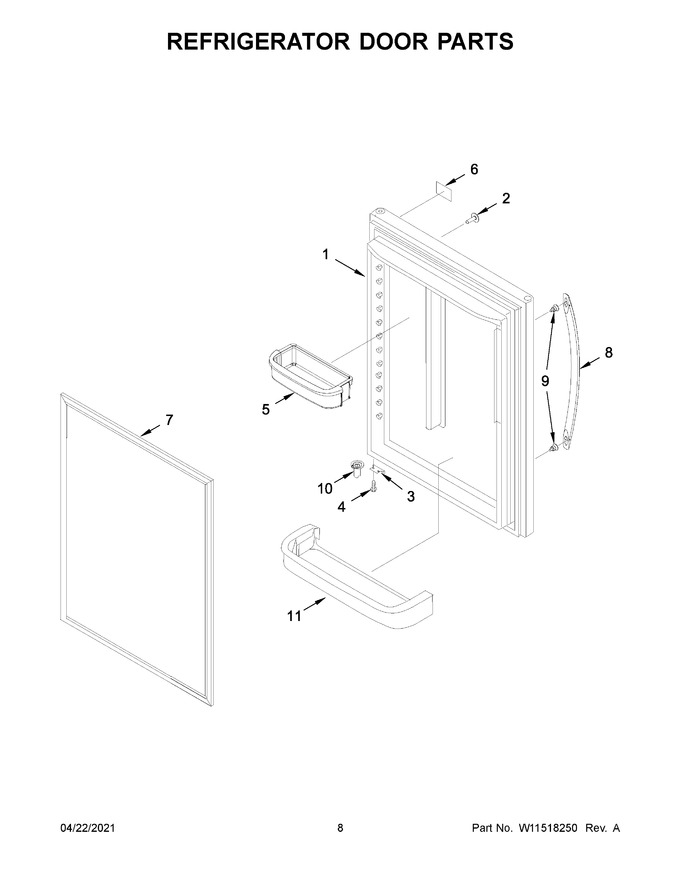

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13109401WQ | Door, Refrigerator (white) (Replaces: 13109401W) |
|
$ 1,073.65 | |||||
| 2 | WP67001130 | Plug, Button (white) (Replaces: 12246607) |
|
Immediately | $ 5.98 | ||||
| 3 | 12968202W | Stop, Door (white) (Replaces: 10447111) |
|
$ 69.29 | |||||
| 4 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 7 | W10443313 | Gasket, Door (white) |
|
$ 361.01 | |||||
| 8 | W10830136 | Handle, Door (white) (Replaces: W10686459) |
|
$ 196.17 | |||||
| 9 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 10 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 11 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 112.90 | ||||
| 10A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 10B | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 1A | 13109401BQ | Door, Refrigerator (black) (Replaces: 13109401B) |
|
$ 1,073.65 | |||||
| 1B | 13107554SQ | Door, Refrigerator (stainless) (Replaces: 13107554S) |
|
$ 1,166.29 | |||||
| 2A | WP12246608 | Plug, Button (black) (Replaces: 12246608) |
|
Immediately | $ 8.15 | ||||
| 2B | WP12246610 | Plug, Button (grey) (Replaces: 12246610) |
|
Immediately | $ 8.15 | ||||
| 3A | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.75 | ||||
| 3B | W11401472 | Stop, Door (grey) (Replaces: 10447114) |
|
Immediately | $ 23.56 | ||||
| 7A | WPW10436248 | Gasket, Door (black) (Replaces: W10436248) |
|
$ 286.97 | |||||
| 7B | W10443314 | Gasket, Door (grey) |
|
Immediately | $ 349.07 | ||||
| 8A | W10830130 | Handle, Door (black) (Replaces: W10686442) |
|
Immediately | $ 189.54 | ||||
| 8B | W11459378 | Handle, Door (stainless) (Replaces: W10686482) |
|
Immediately | $ 183.89 |
