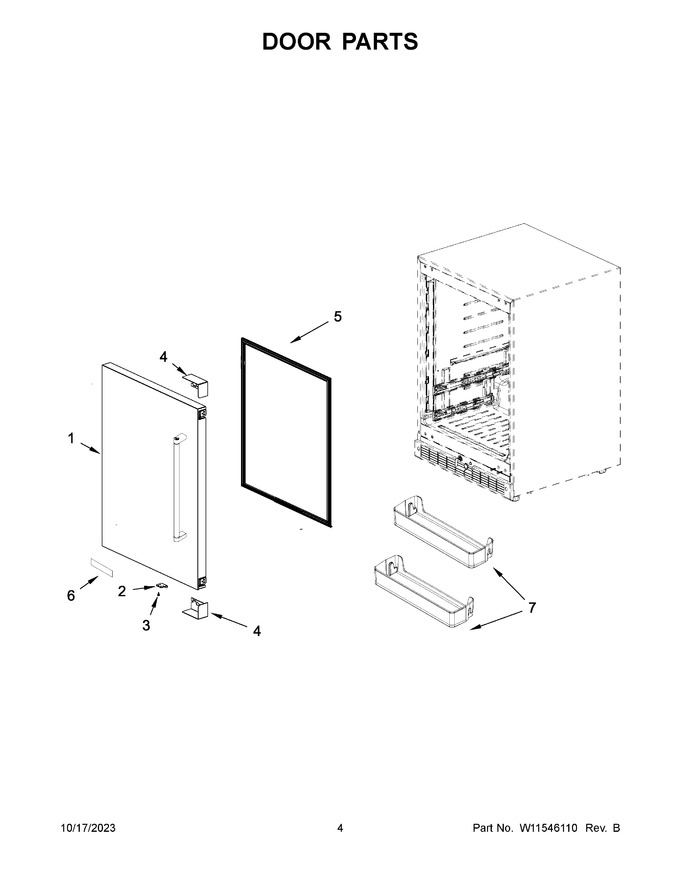

03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11546132 | Door Assembly (left Hinge) |
|
$ 1,016.48 | |||||
| 2 | W11360659 | Plate, Push (Replaces: W11360703) |
|
$ 37.93 | |||||
| 3 | W11675284 | Screw (Replaces: W11371095) |
|
$ 15.94 | |||||
| 4 | W11360661 | Cover, Door Hinge, Right Hinge (top)/left Hinge (bottom) |
|
$ 172.70 | |||||
| 5 | W11747576 | Gasket. Door (Replaces: W11360668) |
|
Immediately | $ 99.12 | ||||
| 6 | W11179312 | Nameplate (Replaces: W10772910) |
|
$ 93.49 | |||||
| 7 | W11546128 | Shelf, Bottle |
|
- | |||||
| 1A | W11546134 | Door Assembly (right Hinge) |
|
Immediately | $ 1,052.07 | ||||
| 4A | W11360664 | Cover, Door Hinge, Right Hinge (bottom)/left Hinge (top) |
|
$ 172.70 |
