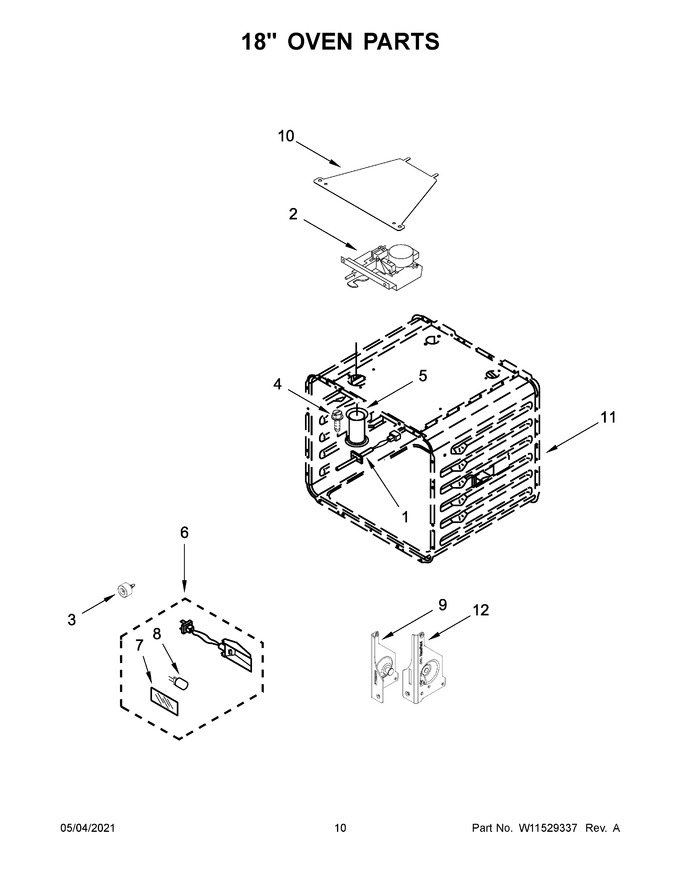

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
2	W11029221		Latch, Motorized   (Replaces: W10830016)			Immediately	$ 327.65
3	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 11.01
4	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
5	W10288078		Tube, Vent				$ 116.85
6	W11233684		Assembly, Oven Light   (Replaces: W11223932)				$ 111.33
7	W10169756		Lens, Light				$ 42.19
8	WPW10169757		Bulb, Light   (Replaces: W10169757)			Immediately	$ 47.38
9	W11096294		Receiver, Hinge (left)		Appelez-nous	-
10	W10160858		Cover, Latch				$ 76.94
11	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
12	W11096293		Receiver, Hinge (right)		Appelez-nous	-
NI	W11688744		Insulation, Wrap, 18   (Replaces: W10282820)		Appelez-nous	-
NI	W10282812		Insulation, Back, 18		Appelez-nous	-
NI	WP3400968		Nut   (Replaces: 3400968)			Immediately	$ 8.36
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
