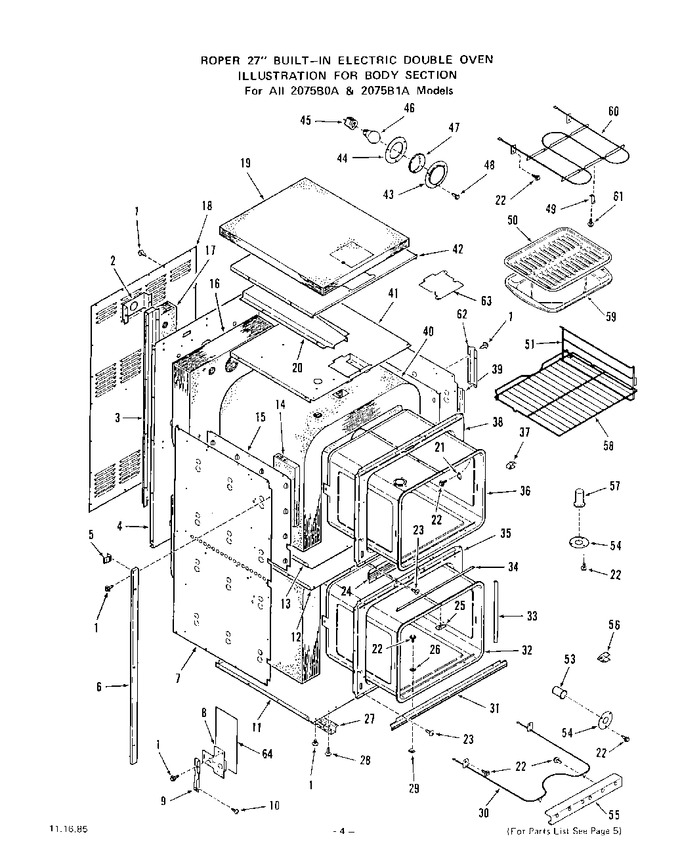

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP112432		Screw 10-32x7/16``   (Replaces: 311484)				$ 8.63
2	323630		Insulation Retainer-oven Light (up. & Lo. Oven)		Appelez-nous	-
3	323638		Rear Oven Vent Box		Appelez-nous	-
4	323626		Main Back		Appelez-nous	-
5	311726		Spacer (6 Req)		Appelez-nous	-
6	311728		Side Trim (lt. Or Rt.)		Appelez-nous	-
7	325527		Left		Appelez-nous	-
7	325528		Right		Appelez-nous	-
8	322609		Hinge Box Assm. -lt Or Rt - (up & Lo. Ov.)		Appelez-nous	-
9	322611		Hinge Angle-lt Or Rt (up & Lo Ov)		Appelez-nous	-
10	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 193.45
11	323624		Cabinet Bottom		Appelez-nous	-
12	323628		Insulation Retainer-ov. Top (lo)		Appelez-nous	-
13	323632		Insulation Retainer-btm. (up.)		Appelez-nous	-
14	279470		Insulation (lt. Or Rt.)		Appelez-nous	-
15	323636		Insulation Retainer-body Side		Appelez-nous	-
16	WP660579		Insulation-ov. Back & Btm. (up Lo. Ov)   (Replaces: 311713)				$ 164.26
17	WP660579		Insulation-oven Light (up & Lo)   (Replaces: 311715)				$ 164.26
18	323661		Cabinet Back		Appelez-nous	-
19	WP660579		Insulation-cabinet Top   (Replaces: 311714)				$ 164.26
20	323640		Vent Box-oven Top		Appelez-nous	-
21	237762		Cover Plate-thermostat Bulb (2 Req.)		Appelez-nous	-
22	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 193.45
23	112013		Screw 10-32 X 5/8``		Appelez-nous	-
24	311554		Center Front Trim		Appelez-nous	-
25	304835		Cover (lo. & Up. Ov)		Appelez-nous	-
26	106462		Washer (up. & Lo. Ov)		Appelez-nous	-
27	328042		Bottom Channel-lt. Or Rt.		Appelez-nous	-
28	105771		Screw 10 - 32 X 1/4``		Appelez-nous	-
29	107956		Speed Nut 10-32		Appelez-nous	-
30	WG02F05449		Upper Oven 2075b1a Model   (Replaces: 331163)				$ 84.06
30	324712		Lower Oven 2075boa Model		Appelez-nous	-
30	WG02F05449		Upper Oven 2075boa Model   (Replaces: 320418)				$ 84.06
31	311558		Lower Front Trim		Appelez-nous	-
32	325911		2075b0a Model		Appelez-nous	-
32	331655		2075b1a Model		Appelez-nous	-
33	313059		Lower Oven Door		Appelez-nous	-
34	313055		Lower Oven Seal Lt Or Rt		Appelez-nous	-
35	325912		2075b0a Model		Appelez-nous	-
35	331669		2075b1a Model		Appelez-nous	-
36	325831		2075b0a Model		Appelez-nous	-
36	331651		2075b1a Model		Appelez-nous	-
37	238052		Thmst. Bulb Retainer-2 Req.		Appelez-nous	-
38	331666		2075b1a Model		Appelez-nous	-
38	325832		2075b0a Model		Appelez-nous	-
39	325532		Raceway		Appelez-nous	-
40	311712		Insulation-ov. Top & Sides		Appelez-nous	-
41	323634		Insulation Retainer-up Ov Top		Appelez-nous	-
42	323646		Insulation Retainer-cabinet Top		Appelez-nous	-
43	229372		Lens Retainer-oven Light-up Ov		Appelez-nous	-
44	229371		Gasket-ov. Light Lens-up Ov		Appelez-nous	-
45	87883		Oven Light Bulb Holder		Appelez-nous	-
46	DA96-01243C		Oven Light Bulb   (Replaces: 111257)				$ 160.00
47	114989		Oven Light Lens (up. Oven)		Appelez-nous	-
48	DE81-07393A		Screw 10 - 32 X 17/32``   (Replaces: 102428)				$ 193.45
49	324809		Broiler Element Support-up Ov.		Appelez-nous	-
50	326297		Broiler Pan Grid		Appelez-nous	-
51	305350		Oven Rack Guide		Appelez-nous	-
53	294679		Oven Vent Tube-lo Ov.		Appelez-nous	-
54	303612		Oven Vent Clamp		Appelez-nous	-
55	325918		2075b0a Model		Appelez-nous	-
55	331670		2075b1a Model		Appelez-nous	-
56	291123		Retainer, Thermostat Bulb (lo. Oven) 2 Req		Appelez-nous	-
57	WP660579		Oven Vent Tube-up Oven   (Replaces: 311716)				$ 164.26
58	311735		Oven Rack-2 Ea. Req.		Appelez-nous	-
59	331592		2075b1a Model		Appelez-nous	-
59	326300		2075b0a Model		Appelez-nous	-
60	ET342		Broiler Element-up Oven   (Replaces: 319526)				$ 49.95
61	69605		Screw 10abx3/8``		Appelez-nous	-
62	324352		Raceway		Appelez-nous	-
63	323648		Cover-lock		Appelez-nous	-
64	114300		Insulation Cover		Appelez-nous	-
