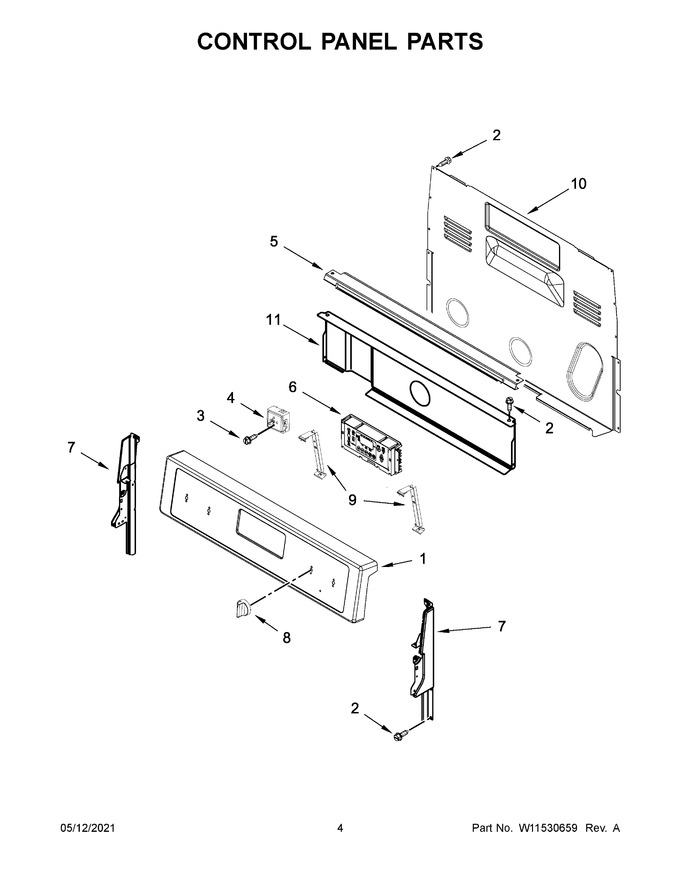

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11096140 | Console (stainless) (Replaces: W10885607) |
|
Immediately | $ 559.19 | ||||
| 2 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | WPW10434452 | Switch, Infinite (dual) (left Front) (Replaces: W10434452) |
|
Immediately | $ 140.84 | ||||
| 5 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 6 | W11536811 | Board, Control (black) (Replaces: W11511574) |
|
$ 332.35 | |||||
| 7 | W11219664 | Endpost, Console (black (left)) (Replaces: W11130372) |
|
$ 153.83 | |||||
| 8 | W11092479 | Knob (stainless) (Replaces: W10858250) |
|
Immediately | $ 82.33 | ||||
| 9 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 84.81 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 4A | 5500-287 | Switch, Infinite (left Rear & Right Rear) (Replaces: 3148951) |
|
Immediately | $ 52.39 | ||||
| 4B | WP3149400 | Switch, Infinite (orange) (right Front) (Replaces: 3148954) |
|
Immediately | $ 90.51 | ||||
| 7A | W11219665 | Endpost, Console (black (right)) (Replaces: W11130379) |
|
$ 45.17 |
