SELECT A DIAGRAM
01 - Cover Sheet

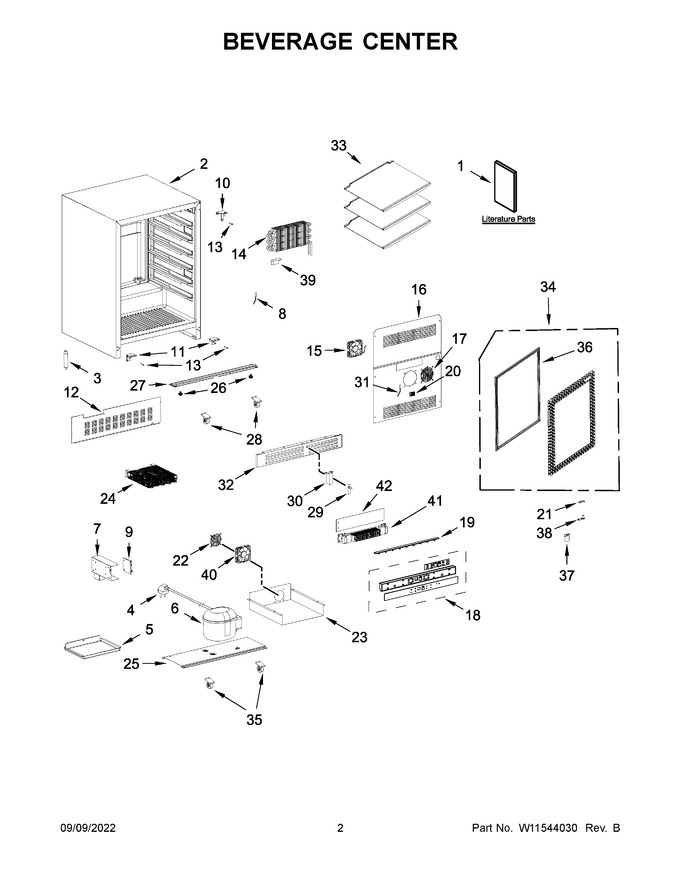

02 - Beverage Center
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10739679 | Use & Care Guide |
|
- | |||||
| 2 | ARI89959A0406B9B609EB9764890B107614 | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W11290639 | Drier Filter |
|
$ 28.69 | |||||
| 4 | W10782176 | Power Cord |
|
- | |||||
| 5 | W11290643 | Water Tray |
|
- | |||||
| 6 | W11297348 | Compressor |
|
$ 617.56 | |||||
| 7 | W11290646 | Cover, Pcb |
|
- | |||||
| 8 | W11290657 | Sensor (red Connector) |
|
$ 125.23 | |||||
| 9 | W11543701 | Main Pcb (Replaces: W11535772) |
|
$ 354.55 | |||||
| 10 | W10782193 | Hinge, Upper Right |
|
$ 76.87 | |||||
| 11 | W11255249 | Hinge, Lower Right |
|
- | |||||
| 12 | W11535783 | Back Cover |
|
- | |||||
| 13 | W10782261 | Screw |
|
- | |||||
| 14 | W10782196 | Evaporator |
|
$ 294.86 | |||||
| 15 | W10792631 | Fan Assembly, Evaporator |
|
$ 259.47 | |||||
| 16 | W11535779 | Air Duct Board |
|
- | |||||
| 17 | W10782263 | Cover, Evaporator Fan |
|
- | |||||
| 18 | W11548211 | Control Panel Assembly (Replaces: W11544650) |
|
- | |||||
| 19 | W10782264 | Led Light |
|
- | |||||
| 20 | W10782222 | Cover, Sensor |
|
- | |||||
| 21 | W11255595 | Stop, Door |
|
$ 76.46 | |||||
| 22 | W10782255 | Cover, Condenser Fan |
|
- | |||||
| 23 | W11255160 | Cover, Condenser |
|
- | |||||
| 24 | W10782251 | Condenser |
|
- | |||||
| 25 | W11542683 | Control Panel Assembly |
|
- | |||||
| 26 | W10782249 | Leg |
|
Immediately | $ 17.81 | ||||
| 27 | W11823723 | Support, Front Leg (Replaces: W11535805) |
|
- | |||||
| 28 | W11535807 | Caster, Front Swivel |
|
- | |||||
| 29 | W10782243 | Switch |
|
- | |||||
| 30 | W10782242 | Support, Switch |
|
- | |||||
| 31 | W11296649 | Sensor (white Connector) |
|
$ 125.23 | |||||
| 32 | W11535793 | Kick Plate |
|
- | |||||
| 33 | W11535816 | Assembly, Glass |
|
- | |||||
| 34 | W11544596 | Door Assembly |
|
- | |||||
| 35 | W11535813 | Caster, Back Swivel |
|
- | |||||
| 36 | W10782239 | Gasket, Door |
|
$ 266.76 | |||||
| 37 | W11544616 | Plate, Switch |
|
- | |||||
| 38 | W10782241 | Axis, Door |
|
$ 63.76 | |||||
| 39 | W11255620 | Foam |
|
- | |||||
| 40 | W11678274 | Fan Assembly, Condenser (Replaces: W10782254) |
|
Immediately | $ 312.34 | ||||
| 41 | W11535794 | Heater |
|
- | |||||
| 42 | W11535803 | Heater Protector Plate |
|
- | |||||
| 10A | W10782260 | Hinge, Upper Left |
|
$ 74.27 | |||||
| 11A | W11255250 | Hinge, Lower Left |
|
- | |||||
| 1A | W10792628 | Energy Guide |
|
- | |||||
| NI | ARI073FA2D88091E20A9765A3568A70CEA3 | Refrigerant Charge 35 Grams (r600a) |
|
- |
