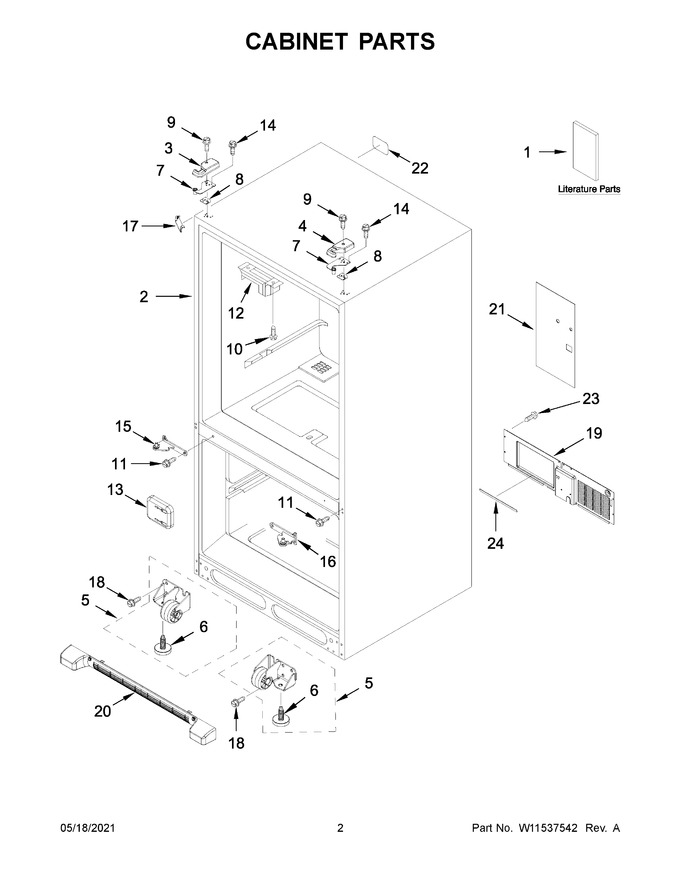

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11468670 | Use And Care Guide |
|
- | |||||
| 2 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | W10337647 | Cover, Left Hinge (includes Foil) (black) |
|
Immediately | $ 23.33 | ||||
| 4 | WP67005956 | Cover, Right Hinge (black) (Replaces: 12962302B) |
|
$ 22.54 | |||||
| 5 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 37.35 | ||||
| 6 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 8.24 | ||||
| 7 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
$ 31.92 | |||||
| 8 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 99.53 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.72 | |||||
| 12 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 8.21 | ||||
| 13 | W11533743 | Cover. Fill Tube (Replaces: W11328747) |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W10918166 | Hinge, Center (left) (black) (Replaces: W10740149) |
|
$ 78.31 | |||||
| 16 | W10918168 | Hinge, Center (right) (black) (Replaces: W10740145) |
|
Immediately | $ 78.07 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 18 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 8.15 | ||||
| 19 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 206.23 | |||||
| 20 | WPW10534162 | Grille, Toe (black) (Replaces: W10534162) |
|
$ 148.16 | |||||
| 21 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 | |||||
| 22 | W11685757 | Label, Fill Tube (Replaces: 12249902) |
|
$ 7.41 | |||||
| 23 | WPW10141645 | Screw (Replaces: W10141645) |
|
$ 8.05 | |||||
| 24 | B5759655 | Gasket |
|
$ 13.03 | |||||
| 1A | W11308954 | Energy Guide |
|
- | |||||
| 1B | W11448653 | Tech Sheet (english) |
|
- | |||||
| 1C | W11448655 | Tech Sheet (french) |
|
- | |||||
| 5A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 37.35 | ||||
| 7A | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 31.90 | ||||
| 8A | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 100.60 |
