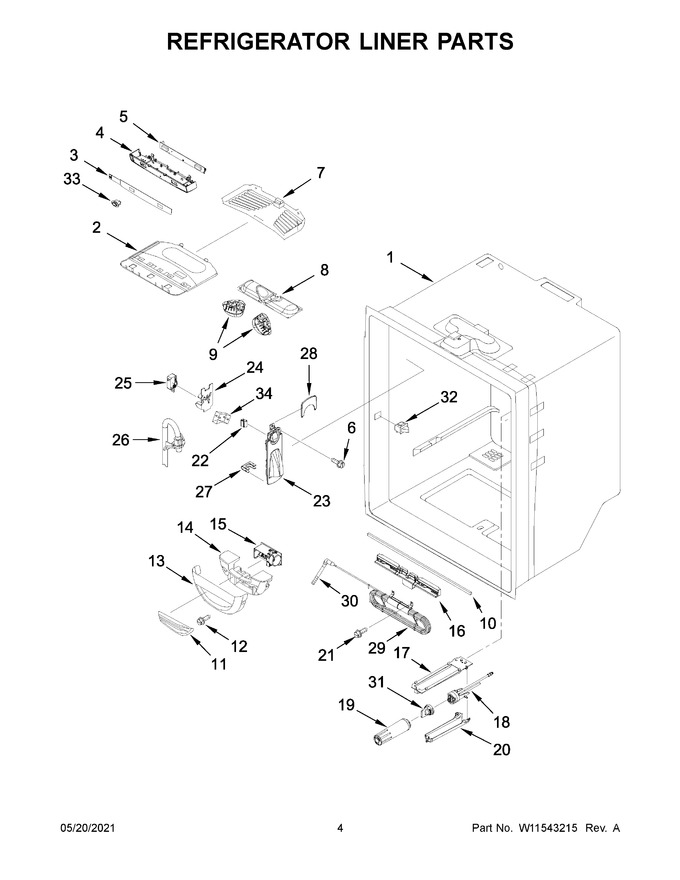

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| 2 | W10464766 | Module, Light |
|
Immediately | $ 113.70 | ||||
| 3 | W11469742 | Overlay, Control (Replaces: W11357424) |
|
Immediately | $ 77.86 | ||||
| 4 | W11469741 | Module, Control (Replaces: W11319776) |
|
$ 42.64 | |||||
| 5 | W11524656 | Board, Control (Replaces: W11324156) |
|
Immediately | $ 337.48 | ||||
| 6 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.90 | |||||
| 7 | W11284721 | Cover, Light (Replaces: W11132917) |
|
$ 106.02 | |||||
| 8 | W10443023 | Housing, Light |
|
Immediately | $ 117.74 | ||||
| 9 | W11602886 | Light Module, Led (Replaces: W11468934) |
|
$ 42.63 | |||||
| 10 | W10568045 | Gasket, Seal |
|
$ 24.57 | |||||
| 11 | 67003900 | Insert, Damper Cover (Replaces: 12806801) |
|
Immediately | $ 8.55 | ||||
| 12 | W11772394 | Screw (Replaces: 12990604) |
|
Immediately | $ 13.22 | ||||
| 13 | WP12806701 | Cover, Damper (Replaces: 12806701) |
|
$ 118.65 | |||||
| 14 | W11750607 | Insulation, Damper (Replaces: 13012402) |
|
$ 50.15 | |||||
| 15 | WPW10594329 | Control, Damper (Replaces: W10594329) |
|
Immediately | $ 171.52 | ||||
| 16 | W10833346 | Insulation, Water Tank (Replaces: W10300461) |
|
Immediately | $ 34.27 | ||||
| 17 | WP67001668 | Plate, Filter (Replaces: 12704801) |
|
Immediately | $ 16.75 | ||||
| 18 | W11844302 | Head, Water Filter (includes Bypass Cartridge) (Replaces: W11308018) |
|
$ 154.88 | |||||
| 19 | EDR4RXD1B | Filter, Water (Replaces: W11256384) |
|
Immediately | $ 49.99 | ||||
| 20 | WP12568001 | Cover, Filter (Replaces: 12568001) |
|
Immediately | $ 86.76 | ||||
| 21 | WP67006415 | Screw (Replaces: 12990512) |
|
$ 8.38 | |||||
| 22 | W10819546 | Clip, Facade (Replaces: B8390302) |
|
$ 13.14 | |||||
| 23 | W11519867 | Facade, Dispenser (Replaces: W11437002) |
|
Immediately | $ 26.35 | ||||
| 24 | W11515355 | Plate, Dispenser (Replaces: W11437528) |
|
Immediately | $ 8.58 | ||||
| 25 | W11527839 | Switch, Limit (Replaces: W11495787) |
|
Immediately | $ 40.54 | ||||
| 26 | W11677725 | Guide, Waterline (Replaces: W11031909) |
|
Immediately | $ 24.76 | ||||
| 27 | 67002816 | Clip, Water Tube (Replaces: 12251001) |
|
$ 19.15 | |||||
| 28 | W11519867 | Facade, Dispenser (top) (Replaces: W11437003) |
|
Immediately | $ 26.35 | ||||
| 29 | W11229977 | Tank, Water (Replaces: W11097710) |
|
Immediately | $ 101.58 | ||||
| 30 | WP2300868 | Union, Water (Replaces: 61006182) |
|
Immediately | $ 29.05 | ||||
| 31 | W11395888 | Cartridge, Bypass (Replaces: 12664501SP) |
|
Immediately | $ 50.72 | ||||
| 32 | W11291138 | Switch, Rocker (Replaces: W10847852) |
|
Immediately | $ 36.67 | ||||
| 33 | W11469740 | Switch, Energy Saver (Replaces: W11311953) |
|
Immediately | $ 38.34 | ||||
| 34 | W11527411 | Foam, Dispenser Plate (Replaces: W11437004) |
|
$ 23.38 | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- | |||||
| NI | W11478401 | Harness, Light (includes Thermistors) (Replaces: W10216622) |
|
Immediately | $ 137.72 |
