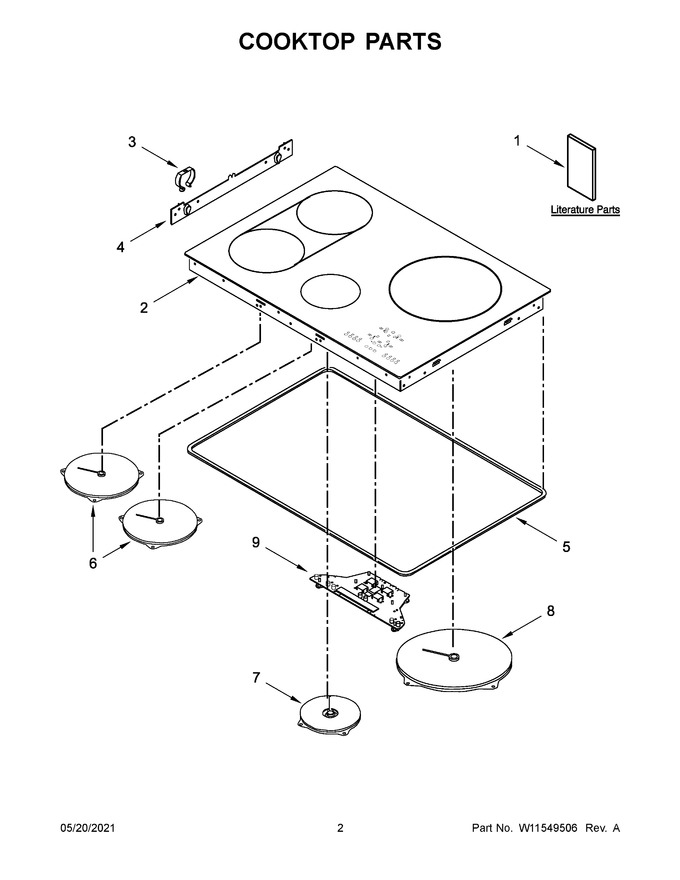

02 - Cooktop Parts
03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10356035 | Installation Instructions |
|
- | |||||
| 2 | WPW10396824 | Cooktop, Glass (black) (Replaces: W10396824) |
|
$ 614.51 | |||||
| 3 | W10810497 | Spring, Cooktop (Replaces: W10328375) |
|
Immediately | $ 22.33 | ||||
| 4 | WPW10328377 | Bracket, Support (Replaces: W10328377) |
|
Immediately | $ 53.05 | ||||
| 5 | WPW10237005 | Gasket, Cooktop (Replaces: W10237005) |
|
Immediately | $ 163.56 | ||||
| 6 | WPW10396548 | Element (180mm 2500/1800w) (left Front, Left Rear) (Replaces: W10396548) |
|
Immediately | $ 394.39 | ||||
| 7 | W11672508 | Element (145mm 1800/1400w) (center Front) (Replaces: W10396547) |
|
$ 257.23 | |||||
| 8 | WPW10396549 | Element (260mm 3700/2300w) (right Rear) (Replaces: W10396549) |
|
Immediately | $ 290.51 | ||||
| 9 | WPW10396615 | User Interface - Display Board (Replaces: W10396615) |
|
Immediately | $ 733.52 | ||||
| 1A | W10623784 | Tech Sheet |
|
- | |||||
| 2A | WPW10396826 | Cooktop, Glass (stainless) (Replaces: W10396826) |
|
$ 671.90 | |||||
| NI | W10328499 | Kit, Mounting Marble Countertop |
|
$ 276.81 | |||||
| NI | NP | Cabinet (not A Servicable Part) |
|
- |
