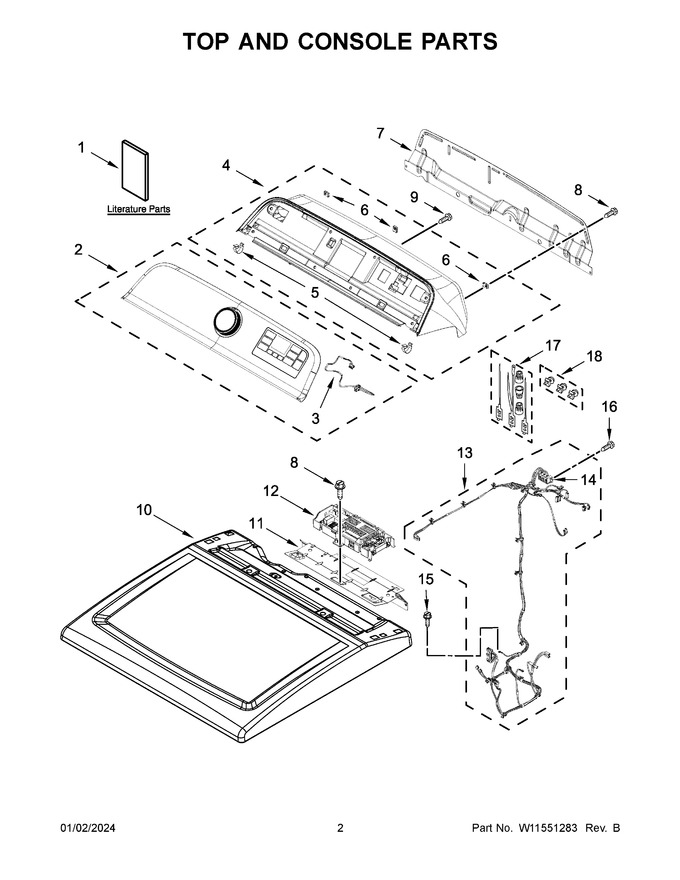

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11268643		Installation Instructions		Appelez-nous	-
2	W11793909		Assembly, Console Fascia (complete)   (Replaces: W11164011)			Immediately	$ 440.60
3	W11721377		Harness, User Interface (hmi)   (Replaces: W11164276)				$ 29.61
4	W11406678		Console (white)   (Replaces: W11127506)			Immediately	$ 358.82
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
6	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.74
7	W11433112		Panel, Rear Console   (Replaces: W11259799)				$ 62.93
8	WP488729		Screw   (Replaces: 3390647)			Immediately	$ 7.79
9	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.86
10	W11641121		Top (white)   (Replaces: W10260246)			Immediately	$ 204.86
11	W11431865		Bracket, Electronic Control   (Replaces: W10896068)				$ 54.51
12	W11782457		Appliance Control Unit (acu)   (Replaces: W11502820)			Immediately	$ 281.62
13	W11700548		Harness, Main Wiring   (Replaces: W11164041)		Appelez-nous	-
14	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 23.02
15	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.06
16	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
17	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
18	279393		Screw Kit, Terminal Block			Immediately	$ 47.37
10A	W11641122		Top (chrome Shadow)   (Replaces: W10458665)				$ 256.02
1A	W11175228		Quick Start Guide		Appelez-nous	-
4A	W11406679		Console (chrome Shadow)   (Replaces: W11128046)				$ 360.52
