01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Dryer Heating Parts-electric
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

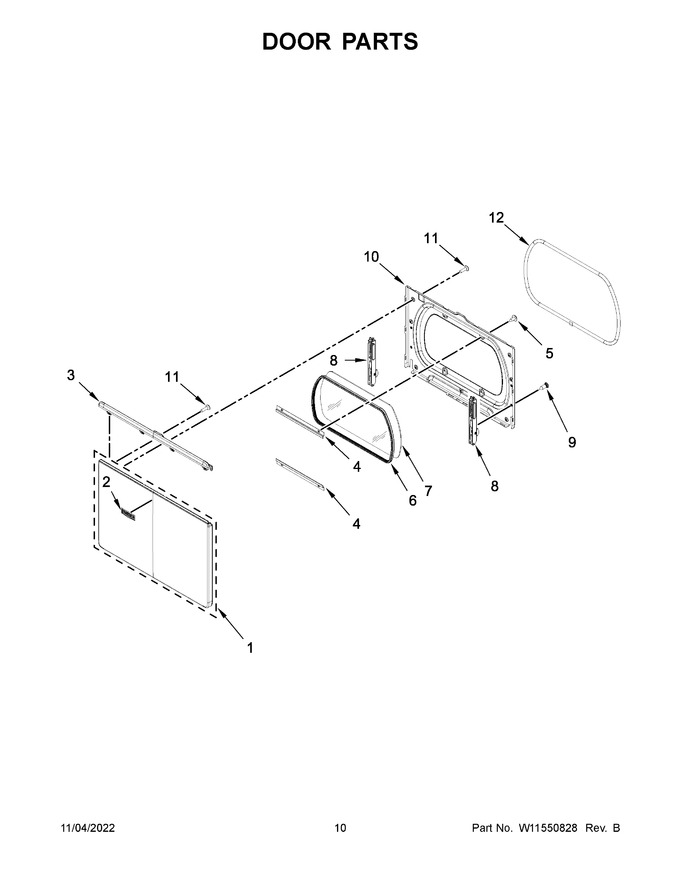

| 1 | W11166841 | Assembly, Outer Door (maytag) |
|
$ 248.35 | |||||
| 2 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 3 | W11186769 | Handle, Door |
|
Immediately | $ 208.91 | ||||
| 4 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 18.01 | ||||
| 5 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 8.52 | |||||
| 6 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 28.37 | |||||
| 7 | W11434304 | Glass, Door (Replaces: W11244983) |
|
Immediately | $ 103.13 | ||||
| 8 | W11551301 | Assembly, Door Hinge (Replaces: W11116025) |
|
Immediately | $ 77.91 | ||||
| 9 | WP488627 | Screw (Replaces: 342055) |
|
$ 8.11 | |||||
| 10 | W11679613 | Assembly, Inner Door (white) (Replaces: W11122062) |
|
$ 202.81 | |||||
| 11 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 7.55 | ||||
| 12 | W11596131 | Seal, Door (Replaces: W11243078) |
|
$ 56.14 | |||||
| 10A | W11176947 | Assembly, Inner Door (chrome Shadow) |
|
$ 171.95 |
