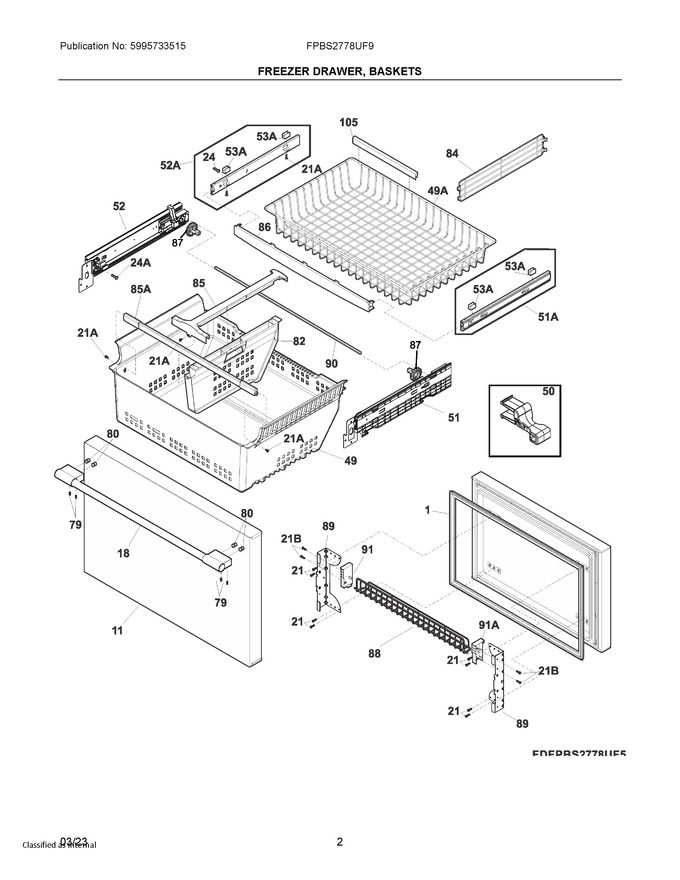

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537408 | Gasket, Freezer Drawer, Grey (Replaces: 5304501270) |
|
Immediately | $ 95.87 | ||||
| 11 | 241987963 | Drawer, Freezer |
|
Immediately | $ 631.73 | ||||
| 18 | 5304536767 | Handle Assembly, Stainless, W/set Screws (Replaces: 5304501174) |
|
Immediately | $ 124.18 | ||||
| 21 | 241690602 | Screw, Quadrex, #10-16 Hilo |
|
$ 11.81 | |||||
| 24 | 5304515677 | Screw, Truss Hd Quad, #10-16 X .500, Zinc (Replaces: 240383406) |
|
Immediately | $ 21.37 | ||||
| 49 | 5304525892 | Basket-frzr, Lower |
|
Immediately | $ 200.71 | ||||
| 50 | 5304501271 | Clip, Freezer Basket |
|
Immediately | $ 17.33 | ||||
| 51 | 5304507978 | Slide Assembly, Basket, Rh Lower, W/pinion |
|
Immediately | $ 284.81 | ||||
| 52 | 5304507979 | Slide Assembly, Basket Lower, Lh, W/pinion |
|
Immediately | $ 276.70 | ||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 82 | 5304529930 | Divider, Lower Basker, Freezer |
|
$ 44.66 | |||||
| 84 | 241780909 | Divider, Basket, Upper |
|
$ 87.41 | |||||
| 85 | 242130901 | Hanger, Basket, Lower |
|
$ 101.96 | |||||
| 86 | 5304507340 | Trim, Drawer, Stabilizer |
|
Immediately | $ 50.61 | ||||
| 87 | 5304507999 | Pinion, Gear |
|
$ 11.80 | |||||
| 88 | 241824008 | Rack-non-tilt Out, Door |
|
$ 137.35 | |||||
| 89 | 5304509676 | Bracket, Freezer Drawer, (2) |
|
$ 85.95 | |||||
| 90 | 241770705 | Bar, Timing (Replaces: 241770702) |
|
$ 56.29 | |||||
| 91 | 241824102 | Cap-door Rack |
|
$ 19.38 | |||||
| 105 | 242116801 | Trim-basket |
|
$ 19.69 | |||||
| 21A | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 21B | 242015001 | Screw, 8-18 X 1/2 |
|
Immediately | $ 18.11 | ||||
| 24A | 240383412 | Screw, Truss Hd Quad, #10-16 X .750, Zinc |
|
$ 12.71 | |||||
| 49A | 241780825 | Basket-frzr, Upper |
|
$ 262.54 | |||||
| 51A | 5304508096 | Slide Assembly, Freezer Basket, Upper Rh |
|
Immediately | $ 155.88 | ||||
| 52A | 5304508097 | Slide Assembly, Freezer Basket, Upper Lh |
|
Immediately | $ 159.25 | ||||
| 53A | 5304508271 | Retainer, Basket, Upper |
|
- | |||||
| 85A | 242139301 | Beam, Support, Divider, Lower Basket |
|
$ 81.90 | |||||
| 91A | 241824101 | Cap, Door Rack, White |
|
$ 19.38 | |||||
| NI | 242146401 | Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4) |
|
Immediately | $ 15.86 | ||||
| NIA | 242011101 | Pin-lock |
|
$ 16.85 | |||||
| NIA | 242139201 | Spring-compression, Divider, Lower Basket |
|
$ 21.91 | |||||
| NIA | 242039702 | Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer |
|
$ 4.73 | |||||
| NIA | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 23.71 | ||||
| NIA | 241979601 | Bumper, Rubber, White, Upper Basket |
|
$ 25.20 | |||||
| NIAA | 242039701 | Screw, Shoulder, #10-16 Type Ab, Upper Slides, W/washer |
|
$ 14.96 |
