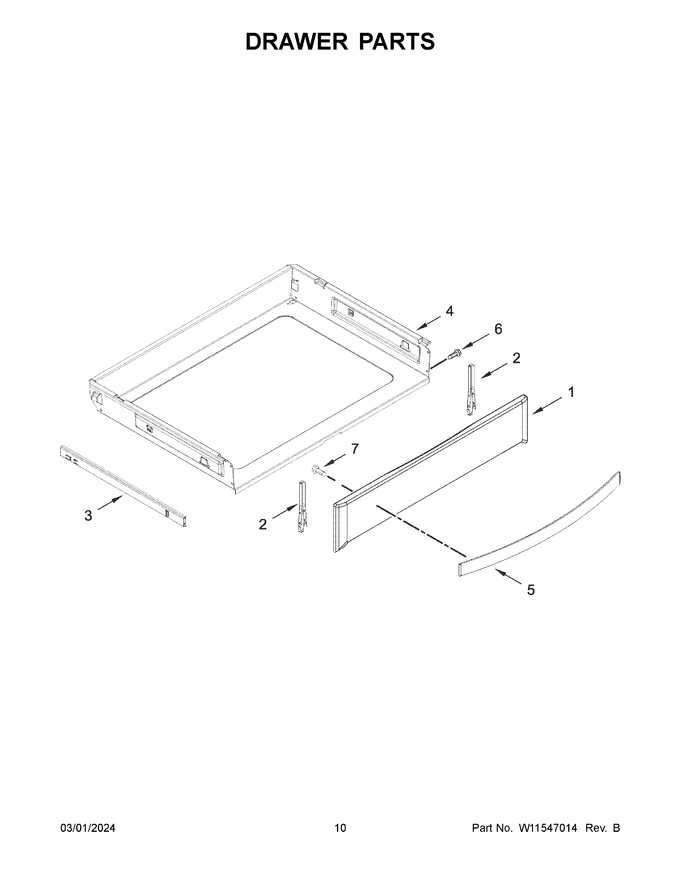

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11532675 | Panel, Drawer Front (stainless) (Replaces: W11449702) |
|
$ 189.18 | |||||
| 2 | WPW10318026 | Bracket, Mounting (Replaces: W10318026) |
|
$ 39.27 | |||||
| 3 | WPW10441804 | Slide, Drawer (left) (Replaces: W10441804) |
|
Immediately | $ 108.20 | ||||
| 4 | W10813962 | Drawer, Storage (Replaces: W10688022) |
|
Immediately | $ 138.15 | ||||
| 5 | W11107877 | Handle, Door (stainless) (Replaces: W10918786) |
|
Immediately | $ 264.75 | ||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 7 | W11846982 | Screw (Replaces: W10498399) |
|
$ 11.75 | |||||
| 1A | W11114992 | Panel, Drawer Front (black Stainless) (Replaces: W11449756) |
|
$ 213.28 | |||||
| 3A | WPW10441805 | Slide, Drawer (right) (Replaces: W10441805) |
|
Immediately | $ 108.13 | ||||
| 5A | W11110500 | Handle, Door (black Stainless) (Replaces: W10903342) |
|
$ 195.52 |
