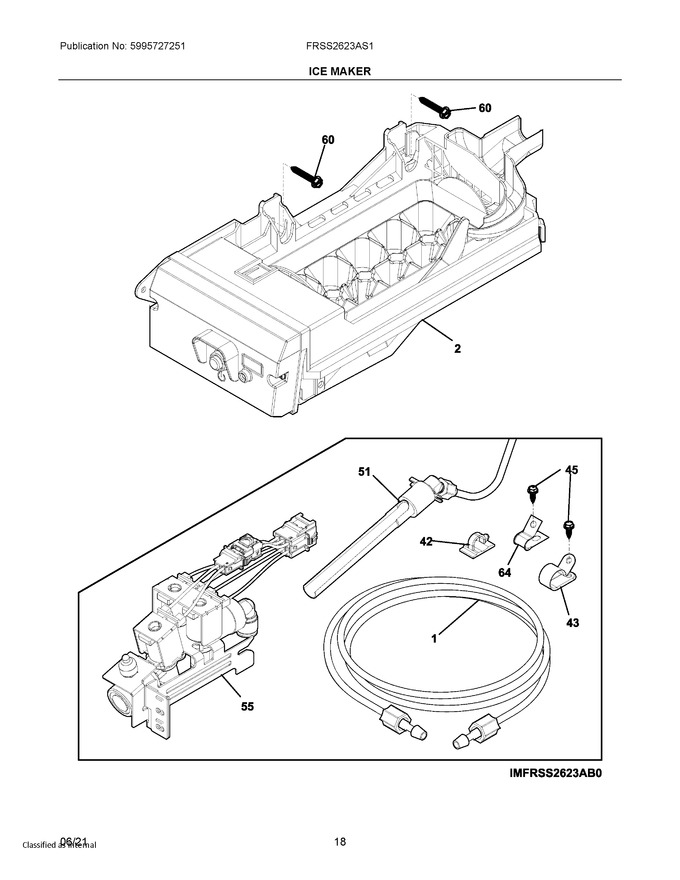

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural, Door, To Dispenser |
|
Immediately | $ 22.84 | ||||
| 2 | 5304532554 | Ice Maker, Assembly (Replaces: 5304525923) |
|
Immediately | $ 154.81 | ||||
| 42 | 218515401 | Clip, Grille/tube, & Hinge |
|
$ 19.69 | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 15.75 | |||||
| 51 | 241796405 | Tube-water Fill, Extension |
|
$ 20.48 | |||||
| 55 | 5304538492 | Valve, Water, Triple Solenoid (Replaces: 5304525994) |
|
Immediately | $ 98.43 | ||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15a X 1.000, (2) (Replaces: 5303207328) |
|
$ 14.18 | |||||
| 64 | 5304455846 | Clamp, 0.31 Id, Steel, Copper Wtr Line (Replaces: 5303001549) |
|
$ 11.81 | |||||
| NI | 241806601 | Connector, Water Tube, 5/16 To 5/16, Straight (Replaces: 242103001) |
|
Immediately | $ 78.40 | ||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 7.09 | |||||
| NIA | 218976439 | Tube, Water, 32", Yellow, Valve, To Door |
|
$ 21.26 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 15.17 | |||||
| NIB | 241850615 | Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915) |
|
$ 38.59 | |||||
| NIC | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker |
|
Immediately | $ 22.84 |
