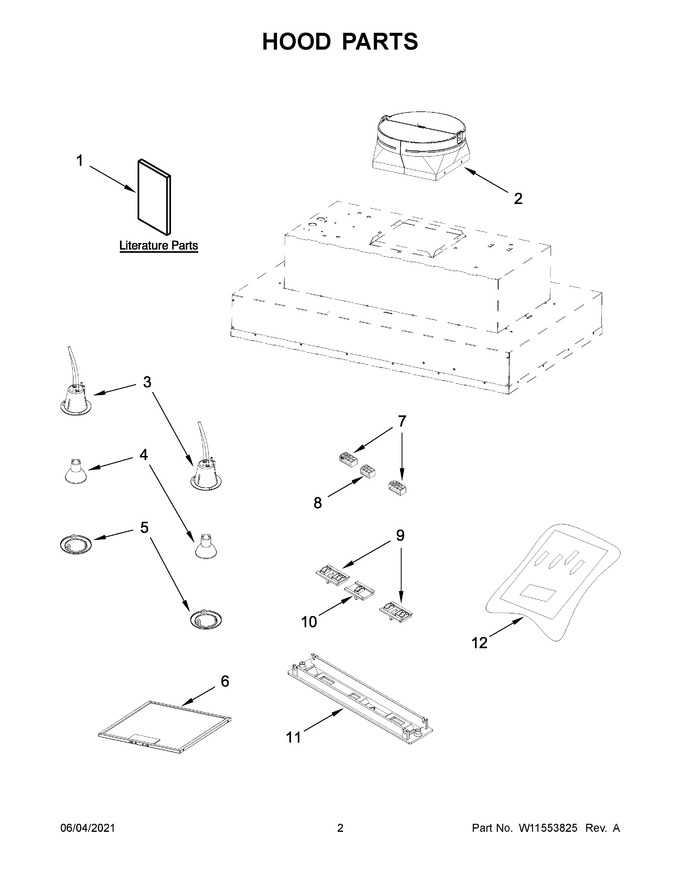

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11508856 | Owners Manual |
|
- | |||||
| 2 | W11551389 | Damper |
|
Immediately | $ 138.74 | ||||
| 3 | WPW10370558 | Socket, Light (Replaces: W10370558) |
|
$ 87.43 | |||||
| 4 | W11800238 | Lamp, Led (Replaces: W11388445) |
|
Immediately | $ 87.63 | ||||
| 5 | W10351924 | Bezel, Lamp |
|
$ 197.59 | |||||
| 6 | W10169961A | Filter, Grease (Replaces: W11245983) |
|
Immediately | $ 41.83 | ||||
| 7 | W10853393 | Switch, Rocker (motor) (Replaces: W10351916) |
|
Immediately | $ 205.37 | ||||
| 8 | W11193832 | Switch, Rocker (on/off) (Replaces: W10351915) |
|
$ 215.60 | |||||
| 9 | W11569415 | Slider, Switch (Replaces: W11397923) |
|
Immediately | $ 30.31 | ||||
| 10 | W11662407 | Slider, Switch (Replaces: W11397924) |
|
Immediately | $ 42.32 | ||||
| 11 | W11387938 | Panel, Switch (Replaces: W11360634) |
|
Immediately | $ 148.80 | ||||
| 12 | W11388447 | Hardware, Installation |
|
$ 124.74 |
