SELECT A DIAGRAM
01 - Cover Sheet
02 - Jar Assembly Parts

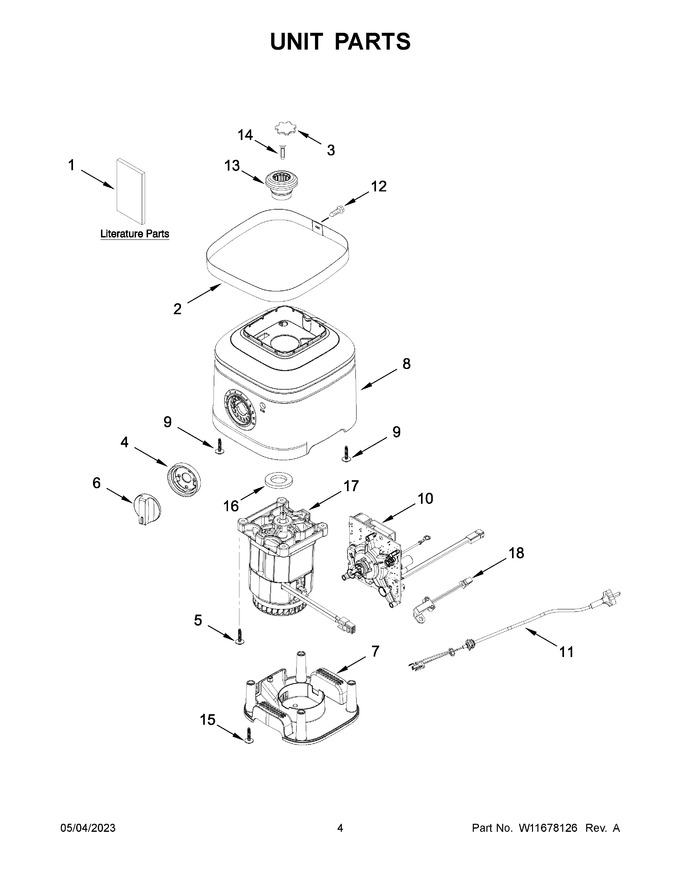

03 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11564370 | Use And Care Guide |
|
- | |||||
| 2 | W11354596 | Trimband |
|
- | |||||
| 3 | W11486757 | Plug, Coupler (Replaces: W11219397) |
|
$ 8.14 | |||||
| 4 | W11627537 | Bezel, Rotary Switch (Replaces: W11214276) |
|
- | |||||
| 5 | WP3395530 | Screw (Replaces: 697773) |
|
$ 8.57 | |||||
| 6 | W11611304 | Knob, Rotary Switch (Replaces: W11357978) |
|
$ 67.28 | |||||
| 7 | W11684609 | Base (Replaces: W11183716) |
|
- | |||||
| 8 | W11245951 | Upper Base (almond Creme) |
|
- | |||||
| 9 | W10276642 | Screw |
|
$ 6.41 | |||||
| 10 | W11580223 | Electronic Control (Replaces: W11518715) |
|
- | |||||
| 11 | W11445179 | Power Cord (black (europe)) |
|
- | |||||
| 12 | WP3196170 | Screw (Replaces: 3400617) |
|
$ 7.55 | |||||
| 13 | W11627528 | Coupler (Replaces: W11294881) |
|
$ 12.57 | |||||
| 14 | W11486756 | Screw, Coupler (Replaces: W11174445) |
|
- | |||||
| 15 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 16 | W11643384 | Seal, Motor (Replaces: W11211960) |
|
Immediately | $ 23.63 | ||||
| 17 | W11443916 | Motor (Replaces: W11187673) |
|
- | |||||
| 18 | W11627538 | Reed Switch (Replaces: W11238803) |
|
- | |||||
| 8A | W11548809 | Upper Base (beetroot) |
|
- | |||||
| 8B | W11328602 | Upper Base (candy Apple) |
|
- | |||||
| 8C | W11328606 | Upper Base (empire Red) |
|
- | |||||
| 8D | W11619387 | Upper Base (hibiscus) |
|
- | |||||
| 8E | W11487489 | Upper Base (honey) |
|
- | |||||
| 8F | W11328603 | Upper Base (imperial Black) |
|
- | |||||
| 8G | W11526674 | Upper Base (imperial Grey) |
|
- | |||||
| 8H | W11328597 | Upper Base (ink Blue) |
|
- | |||||
| 8I | W11361835 | Upper Base (kyoto Glow) |
|
- | |||||
| 8J | W11435553 | Upper Base (matte Dried Rose) |
|
- | |||||
| 8K | W11330937 | Upper Base (medallion Silver) |
|
- | |||||
| 8L | W11435469 | Upper Base (milkshake) |
|
- | |||||
| 8M | W11330939 | Upper Base (onyx Black) |
|
- | |||||
| 8N | W11245947 | Upper Base (passion Red) |
|
- | |||||
| 8O | W11328605 | Upper Base (pebbled Palm) |
|
- | |||||
| 8P | W11330944 | Upper Base (pistachio) |
|
- | |||||
| 8Q | W11328611 | Upper Base (sorbet) |
|
- | |||||
| 8R | W11245949 | Upper Base (white) |
|
- |
